DENSO is a global supplier of advanced robotics technology including Cobotta Pro a high-speed collaborative robot engineered for productivity and safety, 4-axis SCARA robots to 5- and 6-axis articulated robots and large packaging and palletizing robots with our VMB/VL models.
Product filed under:
Controls Controls

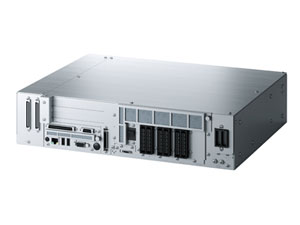

The new DENSO RC7 high-performance robot controller processes programs five times faster than the previous model yet maintains its industry-renowned user-friendly operation, light weight and compact size. The RC7 weighs less than 50 lbs. and is only 440 mm w. x 425 mm d. x 157.5 mm h., saving valuable work-cell space and making it easy to integrate.
The RC7 features an expanded range of communications interfaces as standard, including 100 Base-T Ethernet, USB, RS-232C and Mini Parallel I/O. DeviceNet, Profibus and Parallel I/O ports are optional. The RC7 can control a total of eight axes, including optional conveyor tracking and robot vision. The controller's large, 3.25 MB memory (expandable to 5.5 MB) can hold up to 10,000 programming steps and 30,000 teach points. The RC7 is fully compliant with the latest ISO, ANSI and CE safety standards, making it suitable for global deployment.
Optional accessories include a new, improved teaching pendant with a larger, 7.5 in. color touchscreen and a low-cost yet highly functional minipendant with a 128 x 64 pixel LCD display. WINCAPS II 3-D simulation software allows offline programming and remote, real-time monitoring of robot operation.
