COVAL Vacuum Technology Inc. Product

Vacuum switch 3-color display

Model: PSD Series

COVAL Vacuum Technology Inc.

The new PSD100 series mini-vacuum switch with display offers easy reading thanks to the size of its screen and its 3-color display. Its compactness and lightness facilitate its integration on all machines.

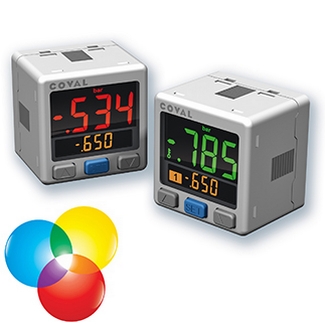

Image of Vacuum switch 3-color display

The PSD100 series mini-vacuum switch with display offers easy reading thanks to the size of its screen and its 3-color display.
Its compactness and lightness facilitate its integration on all machines.
Easily adjustable, it is equipped with an extremely precise electronic vacuum level sensor and has an adjustable digital output as well as an analog output.
The PSD100 has mounting accessories on option, making it very easy to install.

Advantages:
• 3-colour digital LCD display, easy readability.
• 6 pressure units available (kPa, bar, psi, inHg, mmHg, kgf/cm2).
• PNP version:
- 1 PNP digital output (NO or NC).
- 1 analog output (1-5V).
• PNP2 version: 2 PNP digital outputs (NO or NC).
• Double display showing the measured value and threshold value at the same time.
• "Key lock function" with indicator light, «Lock» mode with light indicator to prevent an accidental misadjustment.
• "Power-save function" with indicator light.
• 3 mounting solutions.

Other Products from COVAL Vacuum Technology Inc.

Mini-vacuum Pump with Energy saving function (ASC) Image

Mini-vacuum Pump with Energy saving function (ASC)

With this mini-pump, the guiding principle is energy saving. The LEMAX integrates ASC (AIR SAVING CONTROL) technology

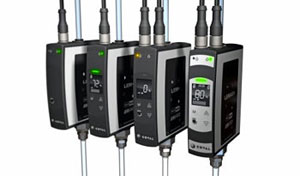

Mini Vacuum Pumps with Fieldbus Communication - EtherNet/IP - Profinet - CANopen Image
