Computar Optics Group Product
Computar lenses have set the world standard through pioneering design, manufacture and global sales. Introduced in the USA during the mid-1970s, Computar lenses have continued to meet security challenges globally for more than 30 years. Our lens product line includes megapixel, telecentric, macro-zoom, IR and other lenses for industry, military, science, video surveillance, machine vision, intelligent transportation systems, life sciences and defense. Custom optical design and manufacturing are available for special applications.
Product filed under:
Optics / Lenses / Filters Optics / Lenses / Filters

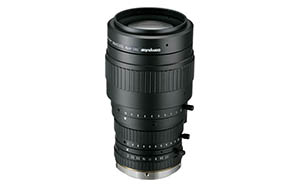

1.1 inch, 5MP, 1.1" 7x Macro Zoom Telecentric Lens (C-mount)
Model: TEC-V7X
This high-performance lens incorporates 2 design functions. It operates both as a 7X macro zoom lens with 0.07X to 0.5X magnification and as a telecentric lens within the 0.25X to 0.5X magnification range. It provides excellent brightness throughout
This high-performance lens incorporates 2 design functions. It operates both as a 7X macro zoom lens with 0.07X to 0.5X magnification and as a telecentric lens within the 0.25X to 0.5X magnification range. It provides excellent brightness throughout the zoom range, maintaining 70% illumination at both the center and corners.
The TEC-V7X’s unique features provide the versatility to meet a wide range of industrial applications. The working distance is adjustable from 182-577mm and a F4.3-32C manual iris allows precise depth of field and contrast adjustments. This lens is suitable for cameras up to 5 megapixels with 1/1.1” sensors.
