Computar Optics Group Product
Computar lenses have set the world standard through pioneering design, manufacture and global sales. Introduced in the USA during the mid-1970s, Computar lenses have continued to meet security challenges globally for more than 30 years. Our lens product line includes megapixel, telecentric, macro-zoom, IR and other lenses for industry, military, science, video surveillance, machine vision, intelligent transportation systems, life sciences and defense. Custom optical design and manufacturing are available for special applications.
Product filed under:
Optics / Lenses / Filters Optics / Lenses / Filters

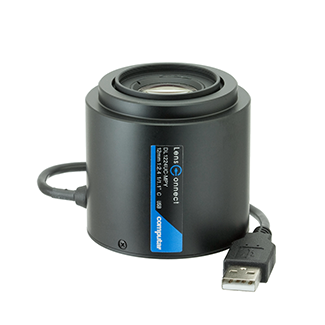

12MP, 1/1.1”, 12mm, F2.4, LensConnect, P-Iris with remote adjustment (C-mount)
Model: DL1224UC-MPY
LensConnect Series of motorized lenses are engineered to enable power supply and control through USB.
The remote control is easy to achieve - even without prior knowledge of the lens. The floating focus design delivers ultra-high resolution from near to far, and stepper motors enable precise focus control and high repeatability.
Features
- 12MP
- Suitable for large format sensors (IMX183)
- 1/1.1” format
- 12mm, f2.4
- P-Iris with remote adjustment
- Power supply & control through USB
- Floating focus design achieves ultra-high resolution from near to far.
- Stepper motors realize precise focus control and high repeatability
- Easy to install by free control software
Other Products from Computar Optics Group
2/3 inch 35mm F2.8 Ruggedized Lens for Type 16 Megapixel cameras (C-Mount)
Computar's Ruggedized Machine Vision Lens Series is ideal for inspection and harsh environments.

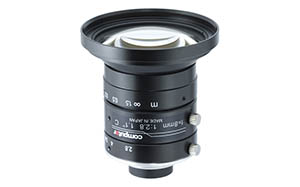

1.1 inch 8mm f2.8, 3.45um, 12.0 megapixel Ultra low Distortion Lens
The MPY Series supports a 1.1” sensor format at 12 Megapixel resolution in a C-mount lens. The MPY Series combines high-performance optics with common focal lengths for maximum application flexibility. For Machine Vision and ITS Applications 8mm Fixed Lens 12 Megapixel C Mount Smallest 1.1” format lens for > 10MP Lens in the industry F 2.8 3.45µm pixel size Lightweight Vibration resistance up to 5G Image circle Ø17.6 Also Available in 12, 16, 25, 35 and 50mm focal lengths.
