S-Family

S-Family: a new generation of small robots

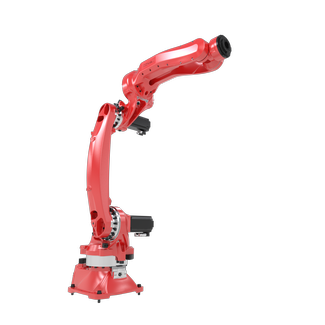

Introducing the S-Family: a new generation of small robots designed to meet the diverse automation needs of customers in General Industry sectors. Developed by Comau, a leading industrial automation provider, the S-18 and S-13 combines traditional expertise with cutting-edge technologies to provide exceptional performance and accuracy.

The S-18 robot offer 18 kg payload and a maximum reach of 1730mm while the S-13 robot offer 13 kg payload and a maximum reach of 1960mm. Both are ensuring excellent cycle time, repeatability, and path control accuracy. Trust Comau’s seasoned industrial experts and innovators to deliver the perfect fusion of tradition and modernization in robotic technology with the S-family.

To learn more visit our website

Features

• Hollow Wrist to facilitate cable routing
• IP65 and IP68 (Wrist) classifcation: High protection against dust and water
• Hygenic Wrist Design to avoid dust accumulation
• UL94-V0
• Energy Certificate (Fraunhofer IWU Institute)
• Slim and Curved Arm: to minimize interference
• Small Footprint and Low Weight
• Special Features: Fully integrated dressings (optional)

Benefits

• The first robot in the world with fully integrated dressing and panel connectors on the robot base
• Hollow Wrist caters to Arc Welding applications and Hygienic environments
• Best in class protection: IP68 (Wrist)
• Easy to install, integrate, program and use
• Small footprint (33x33cm)
• High repeatibility and accuracy

Application Industries

• Foundry
• Food & Beverage
• Plastic
• Chemical Products
• Metal
• Battery manufacturing
• Automotive

What can do

• Handling
• Assembly
• Machine Tending
• Dispensing
• Cosmetic Sealing
• Handling / Packaging
• Arc Welding
