BRAINBOXES LLC Product
PE-505 Pure Embedded 5 Port Industrial Ethernet Switch. Pure compatibility, pure stability, pure design.
PE-505
Pure Embedded 10/100 5 Port Industrial Ethernet Switch
- Eval-kit available
- Mega compact form – smaller than a standard business card (55x55x10mm)
- Industrial operating temp (-40 °C to +85 °C)
- Seamless integration with design software - logical placements and fixed distances
- Board to board and board to cable connection
- LEDs visible in all orientations – can be directed to outer casing via fibre optics or light pipe
- Comprehensive resources: DXF file, PCB footprint and 3D download
Pure compatibility, pure stability, pure design. The perfect fit for any stable, future-proof system, even where space is limited.

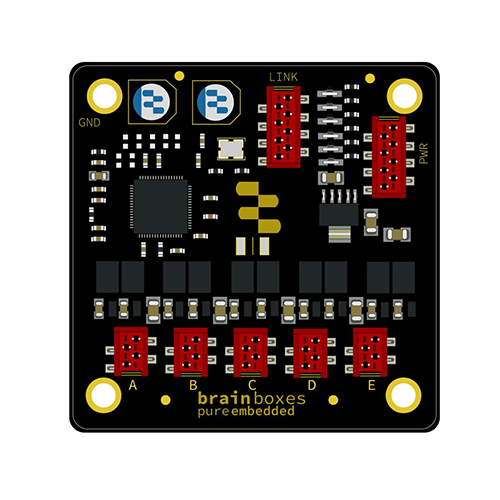

PE-505 Pure Embedded 5 Port Industrial Ethernet Switch has a mega compact form – at 55x55x10mm it’s smaller than a standard business card.
3D CAD files and PCB footprints, combined with logical placements and fixed distances, provide seamless integration with design software.
Board-to-board and board-to-cable connection options, with LEDs visible in all orientations, with the option of routing through fibre optic light pipes.
