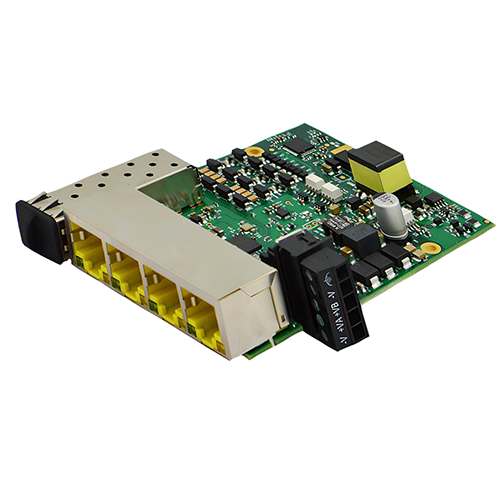

SW-195

Embedded 1 SFP & 4 Port PoE+ Gigabit Ethernet Switch

• High-speed, long-distance data transfer in a single, streamlined solution
• SFP uplink - securely transmit lightning-fast data over longer distances
• 4 PoE+ capable ports - fully compliant to IEEE 802.3af/at
• High PoE power budget 90W @ 70ºC between all 4 PoE ports simultaneously  - efficiently deliver power to connected devices
• Embedded industrial design - operating temp -40°C to +70°C / -40°F to +158°F
• Redundant dual power inputs +44V to +57V DC: enhances system reliability
• Smart LED indicators: real-time status information, quick visual monitoring

PDF Datasheet Download

Embedded PoE+ Industrial Gigabit SFP Ethernet switch.

Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.

Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
