BlueVision, a Techno Horizon Company, Ltd. Product
BlueVision Ltd., Japan provides wide range of advanced imaging solutions by 'prism' technology, we have multi CCD/CMOS line scan, area scan camera , dedicated lenses, and lighting sources which are covered from NUV up to SWIR range of wave length
Product filed under:
Optics / Lenses / Filters Optics / Lenses / Filters

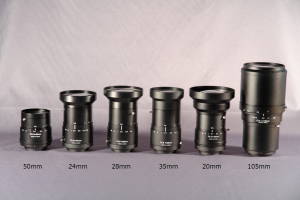

Lens for Prism camera
Model: BV-L1020,L1024,L1028,L1035,L1050,L1105
Designed to be suitable for PRISM based 3CCD/3CMOS/4CCD line scan cameras. New optics design to improve the longitudinal chromatic aberration (Focal point shift for R,G,B channels) and the lateral chromatic aberration (Image size difference for R,G,B channels) (Common to all lenses). High resolution optics design for 7 µm pixel size (4K sensor). Marginal light transmission is from 70% to 85% (Depend on model). F2.8 maximum aperture for all models, Applicable for 30mm length sensors, 300mm from the front of the lens for WD (Working Distance) , M52 mount and F mount are available.
