ASI designs, engineers and manufactures complex wheel drive systems and transaxles recognized globally for their robust construction and worry-free dependability.
Product filed under:
Gearboxes / Gear Motors / Speed Reducers, Mobile, and Motors & Drives Gearboxes / Gear Motors / Speed Reducers, Mobile, and Motors & Drives
Storm 300 Compact Planetary Brushless Wheel Drive with Dual Encoders & IP67 Design Features
.gif)

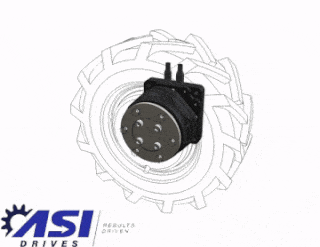

Storm 300
The STORM 300 is one of the new entries in ASI's wheel drive portfolio. Initially designed for outdoor field robotic applications, such as autonomous surveying or where uneven terrain and uncontrolled environments are expected, it includes a 24V BLDC motor, a planetary 20:1 ratio, dual encoders, and an optional electromagnetic power-off brake (not shown). The pair of high-resolution encoders allows the Storm 300 to integrate into a larger robotic system to meet ISO 13849-1 industrial safety requirements, and at only 12.5 pounds and 140 mm in diameter at its widest point, it provides a highly space efficient design with high torque density.
Other Products from ASI Drives
Storm 500 Wheel Drive
Storm 500 Medium Duty Two-Stage Brushless Wheel Drive for Battery Powered Applications up to 500 kg [1100 lbs] per unit.
Storm 400 Wheel Drive
Storm 400 Medium Duty Brushless Wheel Drive for Battery Powered Applications up to 400 kg [880 lbs] per unit.
