APT MOD-PAL® Modular Palletizer - 1 in 1 out Pass-through conveyor
Model: MOD-PAL® 80 / MOD-PAL® 140
APT Modular Palletizing Standard System using a FANUC R1000iA/80H or M410iB/140H robot with pass-through conveyor
This is the APT Modular Palletizing Standard System using a FANUC R1000iA/80H or M410iB/140H robot. There is 1 infeed line and 1 single pallet exit.
This configuration is built using the following MOD-PAL® modules:
1 Robot Base Unit
1 Single Infeed
1 Pallet Conveyor Build Zone
5 Pallet Conveyor Accumulation Zones
1 Access Door Interlocked
1 Lot Fencing
Payload: MOD-PAL® 80 - up to 80 lbs. MOD-PAL® 140 - up to 110 lbs.
Max unit load height (including pallet): MOD-PAL® 80 - 78” MOD-PAL® 140 - 94”
Case rate (picks/minute): 12 ppm
Compact footprint
User-defined pallet pattern
Pre-engineered cell configurations
Standard patterns: Interlock or Column
Standard layers: Flipped or Non-flipped
Case sizes: 7” x 5” x 5” to 24” x 17” x 16”
Slip sheet magazine option
Pallet dispenser option
Stretch wrap-reacy
Pallet style: GMA or CHEP Standard 40" x 48"
EOAT: Vacuum Adjustable
1 Powered roller infeed conveyor
Forklift accessible
Contact APT Manufacturing Solutions at aptmfg.com or 419-542-6681
Other Products from APT Manufacturing Solutions
MOD-WELD ARC MATE Series - Headstock/Tailstock
The headstock/tailstock weld cell is a versatile efficient set up for welding a wide array of long and large components.

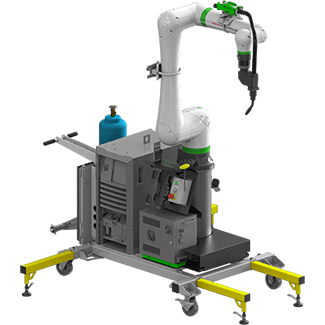

MOD-WELD MAC Series Cobot Traveler
