PS480D72 - 70 VDC Switching Power Supply, 480W, DIN rail mount
- 480 Watts, 6.7 amps
- Regulated ouptut voltage: 70 to 80 volts DC, user adjustable
- Universal input voltage: 120 or 220 VAC
- DIN rail mounted
- Fanless enclosure
- For use with DC-powered stepper drives and integrated motors
The PS480D72 switching power supply is a DIN rail mounted power supply in a fanless enclosure. It is an excellent choice for use with Applied Motion stepper drives and integrated motors.
Compatible Drives and Integrated Motors
All drives and integrated motors where the upper value of the supply voltage range is 70 volts DC or higher are compatible with this power supply, including the following:
- StepSERVO™ Integrated Motors (e.g. TSM23P-3AG, TXM24Q-1EG)
- StepSERVO™ Drives (e.g. SS03-EC-D)
- Integrated Steppers (e.g. STM23Q-2AE, SWM24IP-3EE)
- Stepper Drives (e.g. STR8, ST10-S)
Agency Approvals
The PS480D72 is UL Recognized (File No. E334573), CE approved, and RoHS compliant.
Other Products from Applied Motion Products

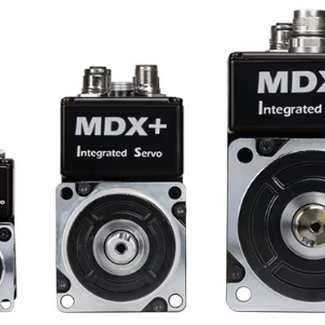

MDX+ Integrated Servo Motors
