0.9 Degree Step Motors

Model: Various NEMA sizes

Applied Motion Products

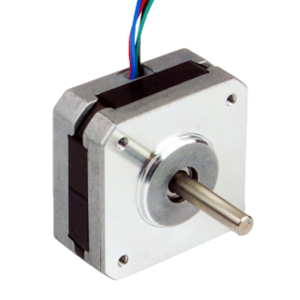

Image of 0.9 Degree Step Motors

0.9 degree step motors are advantageous when microstepping drives are not available. 0.9 degree step motors have twice the step resolution (400 steps/rev) than 1.8 degree step motors (200 steps/rev), and because of this they run inherently smoother when driven with full or half step drives.

Most microstepping drives with 1/10th step resolution or better will provide equal or better smoothness benefits with a 1.8 degree step motor. However in some applications microstepping is not an option, such as when a basic full or half step drive is used, and for these applications a good way to gain smoothness is to use a 0.9 degree motor.

The 0.9 degree step motor offering from Applied Motion includes NEMA frame sizes 14, 17 and 23:

Part Number Frame Size Holding Torque (oz-in)
5014-897 NEMA 14 9.91
HT17-221 NEMA 17 31.15
HT17-222 NEMA 17 12.75
HT23-559 NEMA 23 155.77
HT23-560 NEMA 23 67.97
