Allied Motion Technologies Inc. Product

HeiMotion Premium

Model: AC Brushless Servo

Allied Motion Technologies Inc.

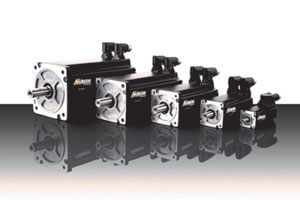

Image of HeiMotion Premium

Allied Motion Technologies introduces the HeiMotionTM Premium (HMP) brushless AC servo motor family. HeiMotion is available in five metric frame sizes with rated torque from 0.12 up to 14.4 Nm, and continuous shaft power from 50 W to 3.75 kW. It offers highly accurate torque ratings, energy efficiency and extraordinary durability (20,000+ hour life span). An innovative compressed winding technology allows for a compact size, as well as lower production costs compared to competitive motors. The series is highly configurable in thousands of combinations to fit virtually any application. It is engineered for use in the machine tools, autonomous vehicles, robots, medical diagnostic equipment and similar high performance applications.

Highlights of the HMP series:

  • Standard flange sizes: 40, 60, 80, 100 and 130 mm
  • Top speed ranging from 2,000 up to 9,000 rpm
  • Holding torque ranging from 0.18 up to 18.5 Nm
  • Winding voltage choices ranging from 48 up to 560 V
  • Optimized inertia
  • Extremely low cogging torque

Optional features include: standard resolver or encoder (including single cable HIPERFACE® - DSL interface), holding brake, and connector choices.
