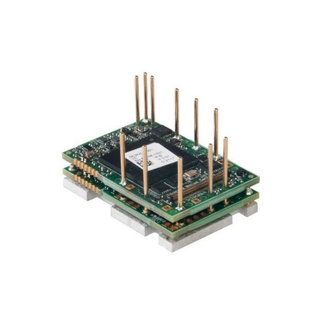

FE060-1-CM

The FE060-1-CM is a FlexPro® series servo drive with IMPACT™ architecture. The FE060-1-CM offers full tuning control of all servo loops and is designed to drive brushed and brushless servo motors, stepper motors, and AC induction motors. The drive accepts a variety of external command signals, or can use the builtin Motion Engine, an internal motion controller used with Sequencing and Indexing commands. Programmable digital and analog I/O are included to enhance interfacing with external controllers and devices.

The FE060-1-CM features a CANopen interface for network communication and USB connectivity for drive configuration and setup. All drive and motor parameters are stored in non-volatile memory. IMPACT™ (Integrated Motion Platform And Control Technology) combines exceptional processing capability and high-current components to create powerful, compact, feature-loaded servo solutions. IMPACT™ is used in all FlexPro® drives and is available in custom products as well.

The FE060-1-CM is ideal for applications in the Medical industry.

See the product detail page for the FE060-1-CM on the Advancced Motion Controls website

Features

	Command Sources Over the Network ±10V Analog Sequencing Indexing Jogging Step & Direction Encoder Following	Motors Supported Three Phase Single Phase Stepper AC Induction
Modes of Operation Profile Modes Cyclic Synchronous Modes Current Velocity Position Interpolated Position Mode (PVT)	Inputs/Outputs 4 Programmable Digital Inputs 3 Programmable Digital Outputs 1 Programmable Anlog Input	Feedback Supported Absolute Encoder BiSS C-Mode EnDat 2.2 Tamagawa/Nikon SSI (Pending) Incremental Encoder Hall Sensors Aux Incremental Encoder Tachometer (±10V)
