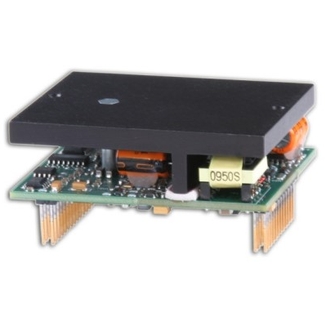

The DZXRALTE-008L080 digital servo drive is designed to drive brushed and brushless servomotors, stepper motors, and AC induction motors.
The DZXRALTE-008L080 digital servo drive is designed to drive brushed and brushless servomotors, stepper motors, and AC induction motors from a compact form factor ideal for embedded applications. This fully digital drive operates in torque, velocity, or position mode and employs Space Vector Modulation (SVM), which results in higher bus voltage utilization and reduced heat dissipation compared to traditional PWM.
The drive can be configured for a variety of external command signals. Commands can also be configured using the drive’s built-in Motion Engine, an internal motion controller used with distributed motion applications. In addition to motor control, this drive features dedicated and programmable digital and analog inputs and outputs to enhance interfacing with external controllers and devices. Network communication is accomplished using either RS-485/232 or Modbus RTU. This DZR Series drive features a single serial interface used for drive commissioning via DriveWare® 7, available for download at www.a-m-c.com. All drive and motor parameters are stored in non-volatile memory.
The DZXRALTE-008L080 conforms to the following specifications and is designed to the Environmental Engineering Considerations as defined in MIL-STD-810F.
Ambient Temperature: -40°C to +75°C (-40°F to +167°F)
Storage Temperature: -50°C to +100°C (-58°F to +212°F)
Thermal Shock: -40°C to +75°C (-40°F to +167°F) in 2 min.
Relative Humidity: 0 to 95% Non-Condensing
Vibration: 30 Grms for 5 min. in 3 axes
The DZXRALTE-008L080 is ideal for applications in the Mobile Robotics industry.
See the product detail page for the DZXRALTE-008L080 on the Advanced Motion Controls website.
 |
Command Sources
|
Feedback Supported
|
|
Modes of Operation
|
Inputs/Outputs
|
|
.png)
Dive even deeper into the DZXRALTE-008L080 PCB Mount Servo Drive via the Product Detail Page on the Advanced Motion Control website!
