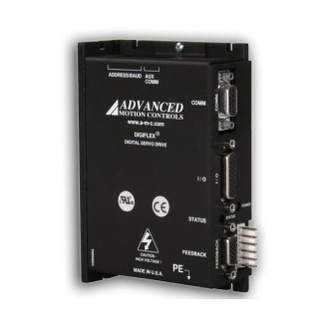

DPRALTE-020B080

The DPRALTE-080B080 DigiFlex® Performance™ (DP) Series digital servo drive is designed to drive brushed and brushless servomotors, stepper motors, and AC induction motors. This fully digital drive operates in torque, velocity, or position modes and employs Space Vector Modulation (SVM), which results in higher bus voltage utilization and reduced heat dissipation compared to traditional PWM.

The DPRALTE-080B080 servo drive can be configured for a variety of external command signals. Commands can also be configured using the drive’s built-in Motion Engine, an internal motion controller used with distributed motion applications. In addition to motor control, these drives feature dedicated and programmable digital and analog inputs and outputs to enhance interfacing with external controllers and devices.

Network communication is accomplished using either RS-485/232 or Modbus RTU. This DP Series drive features a single serial interface used for drive commissioning. via DriveWare® 7.

The DPRALTE-080B080 is ideal for applications in the Machining industry.

See the Product Detail Page for the DPRALTE-020B080 onm the Advanced Motion Controls website.

Features

	Command Sources ±10 V Analog 5V Step & Direction Encoder Following Over the Network Sequencing Indexing Jogging	Modes of Operation Current Position Velocity Hall Velocity
Feedback Supported Halls Incremental Encoder ±10VDC Position Auxiliary Incremental Encoder Tachometer (±10VDC)	Inputs/Outputs 3 Programmable Analog Inputs (16-bit Resolution) 2 Programmable Analog Outputs ( 10-bit Resolution) 2 Programmable Digital Inputs (Differential) 4 Programmable Digital Inputs (Single-Ended) 4 Programmable Digital Outputs (Single-Ended)
