AZBE6A8

Model: AZB6EA8

ADVANCED Motion Controls

Request a Quote

The AZBE6A8 PWM servo drive is designed to drive brushless and brushed DC motors at a high switching frequency.

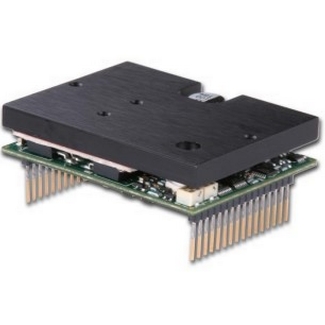

Image of AZBE6A8

The AZBE6A8 PWM servo drive is designed to drive brushless and brushed DC motors at a high switching frequency. To increase system reliability and to reduce cabling costs, the drive is designed for direct integration into your PCB. The AZBE6A8 is fully protected against over-voltage, over-current, over-heating, and short-circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have analog ±10V output. The AZBE6A8 can utilize quadrature encoder inputs for velocity control. This servo drive requires only a single unregulated isolated DC power supply, and is fully RoHS II (Reduction of Hazardous Substances) compliant.

The AZBE6A8 PWM Servo Drive is ideal for applications in the Medical and Packaging industries.

See the product detail page for the AZBE6A8 on the Advanced Motion Controls website.

Features

Command Source

  • ±10 V Analog



Motors Supported

  • Three Phase (Brushless)
  • Single Phase (Brushed, Voice Coil, Inductive Load)



Modes of Operation

  • Current
  • Ducty Cycle (Open Loop)
  • Encoder Velocity
  • Tachometer Velocity



Inputs/Outputs

  • Difital Fault Output
  • Digital Inhibit Input
  • Analog Current Monitor
  • ANalog Command Input
  • Analog Current Reference



Feedback Supported

  • Encoder
  • Hall Sensors
  • Tachometer (±60 VDC)
