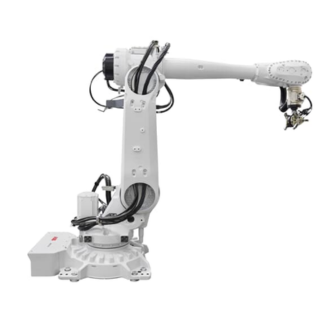

IRB 5710 - High-performance Large Robots

High-performance large robots, payload from 70kg to 110kg

ABB is expanding its large-size robot portfolio with IRB 5710, offering faster, more robust, and accurate performance. The IRB 5710 is available in four variants, presenting a choice of options for payload from 70kg to 110kg, reach from 2.3m to 2.7m.

IRB 5710 is ideal for use in material handling, machine tending, and high-precision assembly applications in the Electric Vehicle battery production, automotive, and the general industries.

Key features

Faster and more robust
Thanks to the robot’s robust design and OmniCore V250XT controller’s motion control, the IRB 5710 provides improved speed and accuracy to help increase productivity. IRB 5710 is faster than other robots in its class and up to 25 percent faster than IRB 6700 and IRB 6620, enabling more products to be manufactured in less time.

More accurate
With excellent position repeatability (0.04-0.05mm), path repeatability (0.12-0.16mm), and path accuracy (1-1.2 mm), IRB 5710 is more accurate than other robots, enabling the highest levels of manufacturing quality to be achieved.

LeanID Integrated DressPack
By integrating cabling within the body of the robot, ABB’s unique LeanID Integrated DressPack reduces the problem of swinging cables that can cause wear and tear, reducing downtime and maintenance costs. LeanID makes it easier to program and simulate with predictable cable movements in RobotStudio®.

Flexible production layout
IRB 5710 has 3 multiple mounting options, including floor, angled, and inverted for maximum production layout design flexibility.

Compact application cell
The smaller turning radius enables compact application cells, saves floor space, and allows increased robot density.

Robot variants
IRB 5710-110/2.3
IRB 5710-90/2.7
IRB 5710-90/2.3 LID
IRB 5710-70/2.7 LID
