PIV High-Speed Camera Guide: SinceVision SH6 Series and 210ns Intervals for Microfluidic Accuracy

The HPC Thermal Bottleneck: The Need for Precision PIV

As AI-driven high-performance computing (HPC) scales, traditional cooling methods have hit a physical plateau. The industry is rapidly pivoting toward in-chip microfluidic systems, capable of enhancing heat removal by up to 3 times. However, optimizing these channels requires visualizing fluid dynamics at the micron scale.

For the fluid mechanics researcher, the primary barrier is the "Precision Gap." Standard high-speed imaging often fails to provide the sub-microsecond timing required for accurate Particle Image Velocimetry (PIV), leading to inaccurate velocity vectors and the "loss-of-pairs" phenomenon.

Technical Solution: The SinceVision SH6 Series Architecture

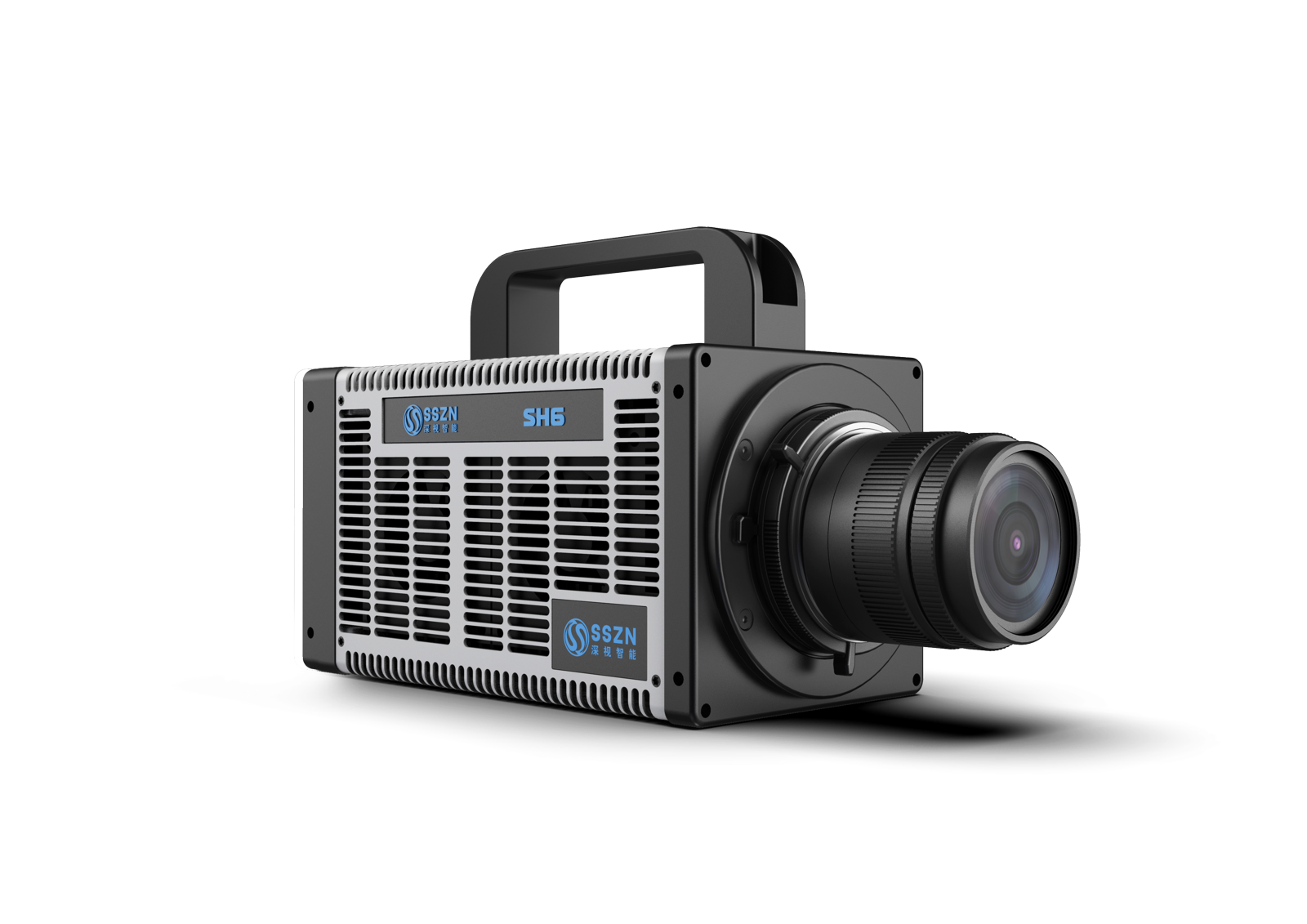

The SinceVision SH6 Ultra-high Speed Series is architected specifically to bridge this gap. By combining nanosecond timing with extreme sensitivity, it serves as a dedicated diagnostic platform for microfluidic and aerosol research.

1. Eliminating "Loss-of-Pairs" with 210ns PIV Intervals

In micro-PIV, high fluid velocities within a small field of view (FOV) mean tracer particles can exit the interrogation window between exposures.

• The Problem: Standard cameras with 1µs intervals often capture blurred streaks rather than discrete points.
• The SH6 Solution: The SH6 features a dedicated 210ns PIV cross-frame interval. This sub-microsecond timing enables sequential image capture with the precision required for advanced cross-correlation analysis, ensuring tracer particles remain within the window for accurate vector calculation.

2. Freezing Motion with 100ns Minimum Exposure

Combined with the inter-frame interval, the SH6 offers a 100ns minimum exposure time. This capability "freezes" hyper-transient events—such as droplet breakup or vapor chamber phase changes—eliminating motion blur. This results in a high signal-to-noise ratio (SNR), which is essential for identifying individual tracer particles in light-starved microscopic environments.

3. High Sensitivity for Micro-Scale Illumination

Micro-PIV research is inherently limited by light levels due to high magnification.³ The SinceVision SH6 addresses this with world-class sensors featuring a 14.6µs pixel size. This large pixel area provides superior photon-gathering capability, capturing faint tracer signals without the excessive noise that typically compromises data integrity in scientific imaging.

Certified System Integrator Program

Set Yourself at the Forefront of the Global Vision Market

Vision system integrators certified by A3 are acknowledged globally throughout the industry as an elite group of accomplished, highly skilled and trusted professionals. You’ll be able to leverage your certification to enhance your competitiveness and expand your opportunities.

GET CERTIFIED

4. 1.15 Million FPS Hyper-Temporal Resolution

For researchers analyzing unsteady flows, cavitation, or shockwave interactions, the SH6 reaches frame rates up to 1,150,000 FPS. This allows for a granular reconstruction of physical phenomena occurring in the microsecond range, providing a level of temporal detail previously reserved for ultra-expensive, defense-grade systems.

Automated Kinematics: Smotion-H Software Integration

Data acquisition is only the first stage of the workflow. SinceVision streamlines the transition from raw video to quantitative engineering reports through the Smotion-H motion analysis software.

Smotion-H is designed to automate post-processing:

• Multi-Target Tracking: Automatically tracks up to 20 target points simultaneously, eliminating manual frame-by-frame marking.
• Kinematic Measurement: The software supports the creation of dynamic coordinate systems to calculate displacement, velocity, and acceleration in real-time.
• Circular Motion Analysis: Advanced algorithms allow for the measurement of angular velocity and angular acceleration, critical for studying micro-turbines or rotating mixers.

Data Integrity for Non-Repeatable Experiments

In high-cost research environments, data security is paramount. The SH6 series supports up to 24TB of customized non-volatile storage. Unlike traditional RAM-only high-speed cameras, this ensures that critical test data—often the result of hours of experimental setup—is secured directly to the hardware, protecting against data loss during power fluctuations or system interruptions.

Conclusion

The transition from 2D monitoring to high-precision measurement and nanosecond-level PIV is the new standard in thermal research. By integrating 210ns PIV timing, 14.6µm, and Smotion-H automation, the SinceVision SH6 high-speed camera provides researchers with the necessary tools to push the boundaries of microfluidic and HPC cooling performance.

Read more on SH6 High-Speed Camera Here
