Non-Contact Sensing for Lithium Battery Electrode Inspection | Accurate Foil, Thickness & Scribing Measurement

The global demand for safer and higher-performing lithium batteries continues to rise, driven by innovations in electric vehicles, energy storage, and portable electronics. At the heart of this evolution lies electrode preparation, a critical stage that significantly affects battery performance and safety.

SinceVision, a leader in machine vision and sensor technology, brings advanced non-contact sensing solutions to streamline and enhance this stage of battery production. This article outlines how SinceVision optimizes key electrode preparation tasks: detecting foil remnants, measuring coating thickness, and inspecting electrode scribing accuracy.

Minimizing Waste with Foil Residual Detection

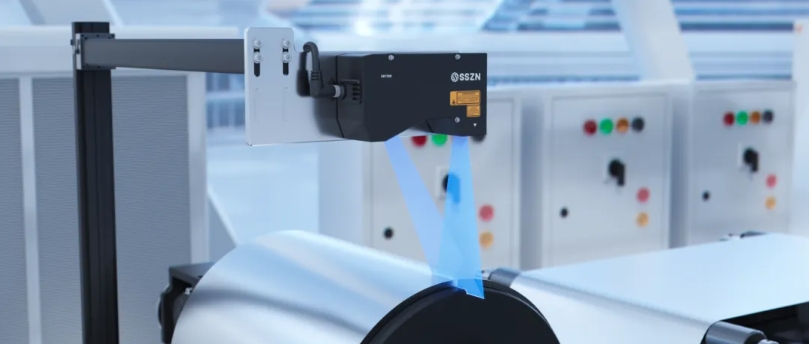

Material waste during the unwinding and changeover of electrode foil rolls can lead to significant cost inefficiencies. To address this, SinceVision deploys the SR Series 3D Laser Profiler, a high-speed optical sensor designed to monitor residual foil material during the early stages of production.

• Detection Width: 288mm
• Repeatability Accuracy: ±0.1mm
• Sampling Speed: Up to 20kHz

By capturing the foil’s surface profile in real time, the system calculates the precise length of unused material. This insight enables process optimization, allowing manufacturers to reduce material scrap and improve overall utilization. It’s a practical solution that offers both sustainability and cost-saving benefits.

Coating and Calendering: Accurate Electrode Thickness Measurement

Consistency in electrode thickness is critical to the electrochemical performance of lithium batteries. Variations in thickness can lead to capacity loss or safety issues during charge and discharge cycles.

SinceVision’s SCI Series Spectral Confocal Displacement Sensor offers precise, high-speed thickness measurement tailored for coating and calendering processes:

• Measurement Accuracy: ±0.3μm
• Scanning Speed: 500mm/s
• Measurement Method: Dual-head opposing detection

Using its confocal optical technology, the SCI Series captures top-and-bottom surface measurements simultaneously. This allows for real-time detection of micro-variations in thickness. When integrated with feedback control systems, it enables dynamic adjustments to calendering equipment, ensuring uniformity across every electrode sheet.

Certified Motion Control Professional Program

Strengthen Your Skills and Enhance Your Career

Become a Certified Motion Control Professional (CMCP) and join the elite group of system integrators, machine builders, manufacturers, end-users and others recognized in the industry for their professional knowledge and expertise.

Become Certified

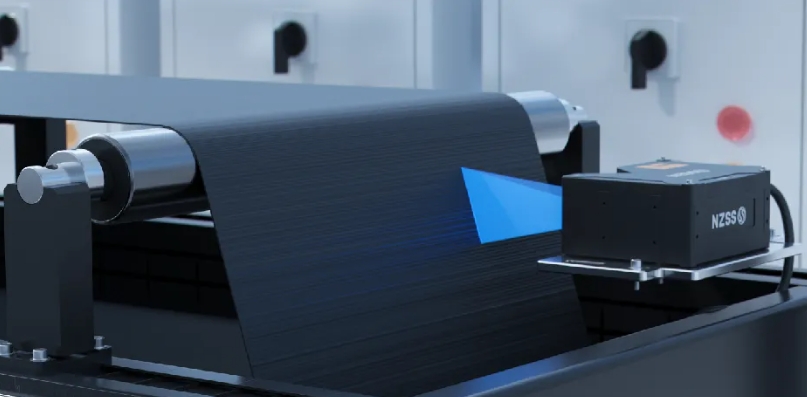

Improving Safety through Accurate Electrode Scribing Inspection
