Miniaturized Fast Steering Mirror Mount Platforms (FSM) for Laser Beam Control are Piezo-based

09/11/2017
2 minutes

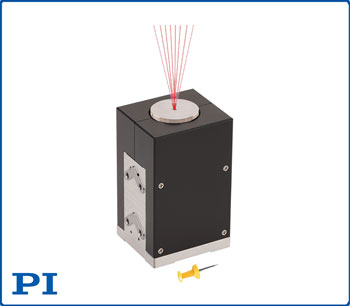

New S-335 fast steering mirror (FSM) platformsPI’s new small laser steering platform stages find use in microscopy, semiconductor beam delivery, optics, and photonics.

PI (Physik Instrumente), a global leader in the field of piezo technology and precision motion systems and solutions, broadens its portfolio of piezo steering mirrors. With milli-second response and settling time and high dynamic linearity, the new S-335 fast steering mirror (FSM) platforms are ideal for precision image processing and image stabilization, laser beam steering, materials processing, and lithography.

2-Axis, Frictionless Guiding, No Polarization Rotation
S-335 steering mirror platforms provide precise angular tip/tilt motion of the top platform around two orthogonal axes. These flexure-guided, electro-ceramic driven systems can provide higher accelerations than other actuators, enabling step response times in the sub-millisecond range, with frictionless backlash-free motion. The single pivot-point design also prevents the drawback of polarization rotation, which is common with conventional 2-axis stacked systems, e.g. galvo scanners.

Long Ranges with Integrated Motion Amplifier
Integrated EDM flexure based motion amplifiers provide an industry-leading tip/tilt angle up to 35mrad, equal to an optical deflection angle of 70mrad (4°). ID chip support allows for fast start-up and a simple data exchange between tip/tilt platforms and controllers.

Get the Training You Need for a Safer Workplace!

Autonomous mobile robots are one of the fastest-growing segments of the robotics industry. During this live virtual training, you'll be introduced to safety protocols and best practices for working with mobile robots in industrial settings.

Learn more and register now for upcoming training dates.



Parallel-Kinematics: Smaller with Improved Stability, Linearity & Dynamics
PI piezo steering mirrors are based on a parallel-kinematics design with coplanar rotational axes and a single moving platform driven by two pairs of differential actuators. The advantage is jitter-free, multi-axis motion with excellent temperature stability. Compared to stacked (two-stage) mirror scanners, the parallel-kinematics design provides symmetrical dynamic performance in both axes with faster response and better linearity in a smaller package.
