High Precision, High Speed XY / XYZ Gantry Stage System Provides High Speed, Precision

POSTED 03/05/2019

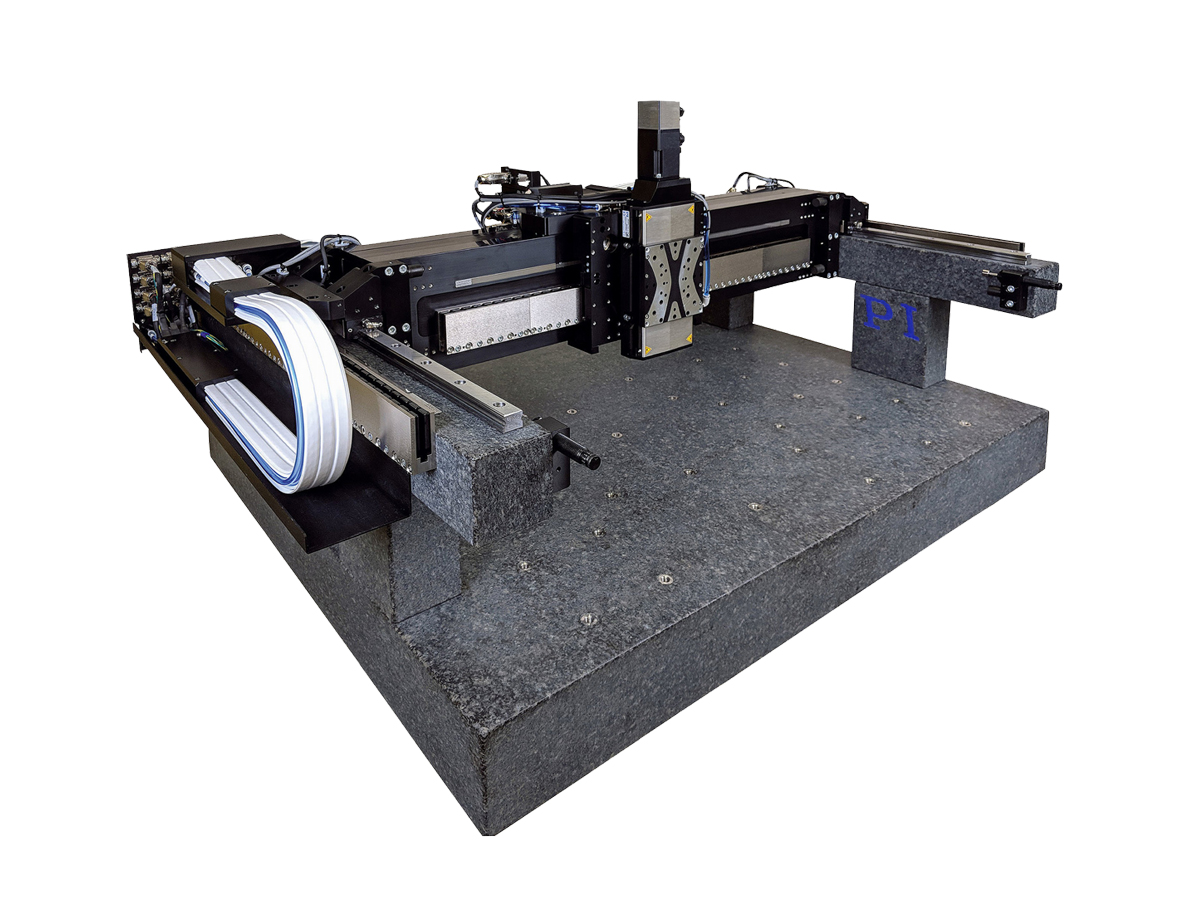

A-351 gantry positioning stagePI’s new A-351 XY  and XYZ high speed and high precision gantry stage positioning stage provides high performance for precision automation applications.

Auburn, MA – PI adds to its family of precision automation sub-systems with the A-351 MGS, a compact mechanical gantry system engineered to deliver maximum throughput for applications that require controlled precise overhead motion. The gantry is driven by linear motors and each axis is equipped with preloaded linear bearings. Applications include high-precision 3D printers, assembly, pick-and-place, alignment, inspection, and other industrial automation applications.

The A-351 MGS gantry system is designed for high load capacity of 20kg, twice the amount of its A-341 air-bearing-based sibling. Absolute-measuring linear encoders with nanometer resolution are optional, rendering homing procedures unnecessary and ironless linear motors eliminate cogging, providing smoother motion without vibration and better velocity control.

Vertical Axis
An optional vertical axis (Z-stage) with either ballscrew drive or linear motor and pneumatic counterbalance can be integrated with the gantry cross axis.
