High Precision Gantry Motion System for Inspection, Assembly, and 3D Printing

PI’s new compact XY / XYZ High Precision, high speed gantry motion system provides overhead motion for industrial automation applications in assembly, pick-and-place, alignment, inspection, and custom 3D printer design. The A-351 compact gantry is designed and manufactured in the USA by PI’s air bearing & precision motion division in Hopkinton, MA.  The A-351 is available as a granite based motion system and also with an aluminum base.

Auburn, MA – The A-351 high speed, high precision motorized gantry XYZ stage motion system is related to the A-341 hybrid air bearing high accuracy XYZ gantry stage / granite motion system . Driven by linear motors and guided by precision mechanical linear bearings, the system provides high speed and accuracy, at a lower price compared to its air bearings-based brother. Advanced absolute linear encoders increase accuracy and reduce start-up time by rendering homing procedures unnecessary. The integrated ironless linear motors eliminate cogging, providing smoother motion without vibration and better velocity control. The highest motion performance and easy integration with factory automation systems is guaranteed by an ACS-based motion controller with EtherCat connectivity.

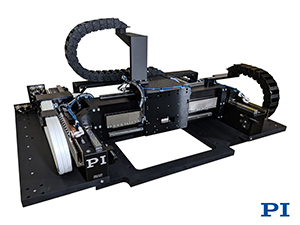

XY / XYZ gantry systems, A-351

Optional Z-Axis Stage / Customizations
For applications requiring a motorized vertical axis, several Z-stage options are available, with either screw-driven platforms or linear motors and pneumatic counterbalance. Other customizations, such as mounting platforms for vision systems, dispensers etc, are also offered.

Features of the gantry motion system include:

• Standard XY travel ranges from 300x300 to 500x1000mm
• Absolute encoders, 1 nanometer resolution
• Z-Stage options: linear motors or ball screws
• Dynamic error mapping with ACS motion controller
• High velocity: Up to 2 meters/second on the cross axis
• Cable carrier option, e-chain
• Water cooling option for high acceleration / high duty cycle applications

Industry-Leading Motion Controllers
The A-351 overhead XYZ high precision gantry XYZ stage / granite motion system is available with a range of industry-leading ACS motion controllers / drives that offer superior servo performance, advanced control algorithms to improve dynamic performance and error compensation specifically for gantries, and a wide suite of software development tools.
