Parker Releases Space- and Cost-saving ETH125 High-force Electric Cylinder

The new 125mm frame size dramatically extends the thrust force capacity, making it industry leading for ball screw technology and comparable to roller screws for a fraction of the cost

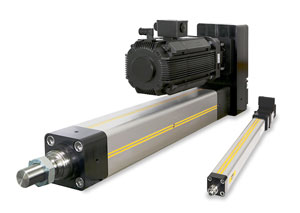

Irwin, PA – Parker’s Electromechanical Automation Division, a leading supplier of motion control technology, is pleased to announce the release of the ETH125 electric cylinder.

Parker’s latest addition to the ETH product line serves to further extend the performance range of the series and create a family of products that maintains the greatest thrust density of any ball screw driven actuator on the market today. The ETH125 is the fifth and largest frame size in the series and expands this line of industrial cylinder product to serve a much broader range of application requirements.

The ETH is the next generation of electric thrust cylinder product and utilizes a completely new integrated drive train and guidance design that has enabled Parker to maximize the overall thrust capacity within a smaller overall footprint. With the development of the 125mm frame size, Parker’s ETH now spans a thrust range up to 114,000 N (25,618 lbs) and has been designed to compete with similarly sized roller screw products and offer an energy efficient solution to hydraulic actuation.

With a wide range of standard configurable options, as well as customizable solutions, the ETH is designed to solve today’s most challenging applications.

ETH high force electric cylinder features:

• Maximized thrust density and precision position control
• 5 frame sizes: 32,  50, 80, 100 & 125mm (DIN ISO 15552:2005-12 mounting footprint)
• Oversized ball screw and thrust bearings
• Maximum thrust: 114 kN (25,628 lbs)
• Maximum stroke: 2m (79 in)
• Maximum speed: 1.7 m/s (67 in)
• Maximum acceleration: 15 m/s2 (1.5 G)
• Bi-directional repeatability: +/- 0.03mm (.012”), +/- 0.05mm for parallel mount (.020”)
• Duty cycle: 100%
• IP54 rated as standard with options for IP65 and higher
• Integrated anti-rotation device

For more information on Parker’s ETH line, please visit www.parkermotion.com/ETH
