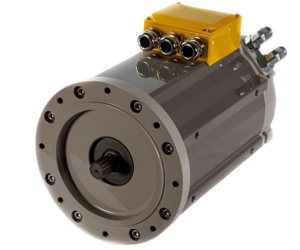

Parker Introduces GVM142 Vehicle-duty Motors
POSTED 10/13/2014
The Global Vehicle Motor (GVM) Series of PMAC traction motors is the most comprehensive offering available and now includes an additional frame size
Parker’s Electromechanical Automation Division, a leading supplier of vehicle motor and electronics technology, is pleased to announce the second phase of its HEV motors: the GVM142.
The GVM142 generator and auxiliary motor series is a highly advanced electric machine intended to be used in electric and hybrid electric vehicle accessory applications. Pre-production units are being used and tested in major vehicle programs around the world for high-power alternator replacements as well as electrohydraulic pump control – such as power steering or aerial lift hydraulics.
Phase 2 includes the 142mm frame size with an SAE A adapter mount to be close coupled to hydraulic pumps. Within this frame size, there are 3 rotor lengths and dozens of winding variations. Those variations together allow the GVM142 to have more than 100 combinations of base speed and power output for ultimate scalability and fine-tuning to the vehicle’s exact power generation or electrohydraulic requirements.
Some key features of the GVM:
Market Intelligence News & Insights:
How Will Apple’s $500 Billion Investment for US Manufacturing, Education, and AI Play Out?
On February 24th, Apple announced a “commitment… to spend and invest more than $500 billion in the U.S. over the next four years”, with plans for new manufacturing plants, enhanced support for manufacturing partners via their Advanced Manufacturing Fund, and a myriad of other initiatives. As part of this plan, Apple projects 20,000 new hires, with roles focused on R&D, silicon engineering, software development, and AI/ML engineering.
- Rated power from 2.6kW to 30kW+
- Rated torque up to 36Nm
- Rated speed range from 1600rpm to 9800RPM
- Peak power densities up to 3.7kw/kg
- Operating voltages from 24VDC to 800VDC
- SAE J1455 environmental standards
- Highly efficient rotor and stator design yielding up to 20% more usage time per kwhr
- Patent-pending cooling configuration uses WEG or ATF (oil)
- Manufactured in USA and Europe
“With the addition of this exciting product, Parker will be able to deliver an electric motor suitable for mobile power generation and electrohydraulic pumps that can be exactly matched to the vehicle’s needs," said Jay Schultz, Business Development Manager for Parker Hannifin ([email protected]). "Vehicle designers no longer have to compromise on a motor with performance that is 'close enough.'”
To download the 56-page technical catalog, complete with GVM142 and GVM210 performance and part numbering tables, visit www.parker.com/hev.
Future phases will include 310mm and 470mm frame sizes – all with the same scalability and high performance.
