New Profile Rail Linear Recirculating Bearings from Lintech

Lintech’s MR, ARC & HRC Profile Rail Linear Recirculating Bearings incorporate two or four rows of re-circulating balls arranged in a 45 degree contact angle with the raceway. The rigidity under moment and torsional loads is increased by this design. Larger ball size is used to enhance the load capabilities. This design offers equal loading in all directions while providing smooth motion. Features of the MR, ARC & HRC series include:

• Size 15, 20, 25, 30, 35, 45 available in N, H and P accuracy grades
• V0, V1 and V2 block pre-loading options for most models
• Short/Normal/Long block lengths available with Normal and Flange width styles

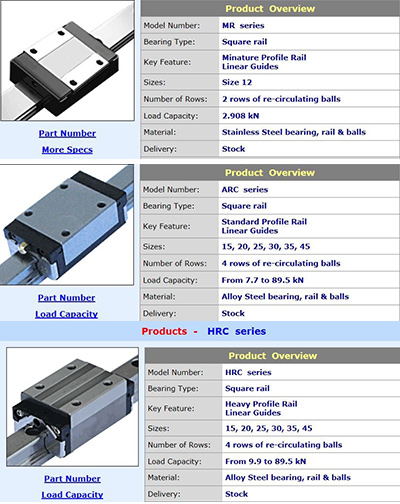

Lintech’s family of cost-effective short-delivery Profile Rail Linear Bearings includes:

MR Series – Miniature Profile Rail Linear Guides featuring:

ROI Calculator

Discover the potential cost savings of robotic automation over a 20-year system life

This calculator compares your current manual labor costs against the total cost of owning and operating a robotic system over its 20-year lifespan.

EXPLORE TODAY

• 2 rows of re-circulating balls
• Equal loading in all directions
• Dust proof design
• SS bearing, rail, and balls
• Self-lube reservoir standard

ARC Series – Standard Profile Rail Linear Guides featuring:

• Application Rail
• 4 rows of re-circulating balls
• Equal loading in all directions
• Dust proof design
• Alloy steel bearing, rail, and balls
• Self-lube reservoir optional

HRC Series- Heavy Profile Rail Linear Guides featuring:

• Heavy Load Rail
• 4 rows of re-circulating balls
• Equal loading in all directions
• Dust proof design
• Alloy steel bearing, rail, and balls
• Self-lube reservoir optional
