EtherCAT (Ethernet) with CiA402 Drive profile for MAC motor® and ServoStep
POSTED 01/11/2019

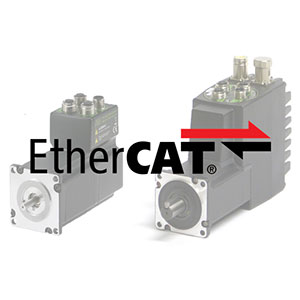

Birkerød, Denmark - JVL A/S, one of the world’s leading producers in the field of integrated servo and stepper motors, is announcing the CiA402 Drive profile and syncronization for EtherCAT.
Ready for Industry 4.0 and IIoT (Industrial IoT)
The JVL EtherCAT module is equipped with two Ethernet connectors and a built-in switch, enabling line, star, tree and ring topology without any extra expensive hardware. The JVL EtherCAT module has several LEDs, enabling technicians and operators to get a quick status overview. There are also opto-isolated digital I/Os embedded in the module, enabling control of extra sensors etc. without external I/O modules. This minimizes the number of devices on the net and reduces cable costs.
All connectors are rugged M12 connectors suitable for the rough conditions in industrial environments.
Furthermore, all registers in the JVL MAC motor® are accessible via the EtherCAT connection, thereby enabling complete control of motor configuration and motion.
The JVL EtherCAT module is very easy to use and configure via a predefined setup, and commissioning is easy using the JVL MacTalk application software.
EtherCAT Industrial Ethernet
The EtherCAT module with CiA402 drive profile for JVL servo and stepper motors support the synchronized position (CSP) and synchronized velocity (CSV) modes as well as the old modes profile position, profile velocity and many homing methods. The synchronized cycle times for MIS Integrated Stepper can be 1, 2, 3 and 4mS. MAC Integrated Servomotor have 1 and 2mS cycle times. Both have a maximum of ±1µs of jitter.
The JVL EtherCAT equipped motors are plug and play compatible with Beckhoff PLC’s, and also compatible with other manufacturers of EtherCAT masters such as Omron, Lenze, Trio and others.
Read more here: www.EtherCAT.org.
Practical Features
Cabling is a hassle? Using the onboard Ethernet-switch you can daisy-chain cables from one EtherCAT motor to the next, enabling line and ring topology without any extra expensive hardware.
On the motor-side, one of the big advantages of using integrated servo motors or stepper motors from JVL, is that you do not need to install a separate servo driver or controller in a control cabinet. This gives you many subsequent advantages: Space savings in your control cabinet, saving of expensive motor and encoder cables, saving time (and money) for cabling, noise is minimized due to internal cabling, and installation errors between driver and motor are eliminated.
In addition, service is much easier, since the motor and controller can be replaced as a single integrated unit. Hence, downtime is minimized and production is maximized.
Quite uniquely on the market, users can even change Ethernet protocol by updating the firmware using the MacTalk software.
About JVL
JVL is a world leader within the development and production of efficient and compact integrated servo motors and integrated stepper motors. MAC motor® is a series of integrated brushless servo motors (up to 4500 W and 13.5 kW peak) and ServoStep is a series of integrated stepper motors (up to 25 Nm). Both the servo motor and stepper motor series include motor, controller, Nano-PLC, encoder and bus system integrated into one compact unit. All industrial Ethernet protocols like Profinet, EtherNet/IP, EtherCAT, Sercos III, ModbusTCP and Powerlink are available.
JVL has more than 25 years of motion control experience and is well known for its development and production of highly specialized integrated motors with industrial Ethernet and customized improvements. The close co-operation with customers and representatives results in cost-effective and technical optimized solutions for both basic and advanced motion control applications.
JVL's wide selection of quality products for motion control applications include: Integrated brushless Servo motors, Integrated Stepper motors, AC Servo motor controllers, Motor drivers (DC, AC and Steppers), Brakes, Gearboxes and HMI touch panels.
