Customizable Lintech 100 Series Screw Driven Linear Stages Ship In 1 Week

Lintech’s 100 Series Positioning Tables set the standard for high performance and value

Acme Screw or Ball Screw Driven Linear Motion:

The Lintech 100 series linear positioning slides are designed to maximize performance while minimizing physical size and cost. These linear slides use a low friction, preloaded, recirculating linear ball bearing system, which ride on precision ground linear square rail guide. The linear profile rails are mounted to a precision machined aluminum base, which offers a rigid support over the entire travel of the table's carriage. The load is mounted to a precision machined aluminum carriage, which has threaded stainless steel inserts for high strength and wear life.

Certified Motion Control Professional Program

Strengthen Your Skills and Enhance Your Career

Become a Certified Motion Control Professional (CMCP) and join the elite group of system integrators, machine builders, manufacturers, end-users and others recognized in the industry for their professional knowledge and expertise.

Become Certified

There are 30 different acme & ball screw options, that offer high efficiencies and long life at an economical price. These linear positioning tables are designed to allow for numerous options. They include EOT & Home switches, linear & rotary encoders, power-off electric brakes, motor wrap packages and versatile mounting brackets for multiple axis applications.

Single or Multi-Axis Configurations:

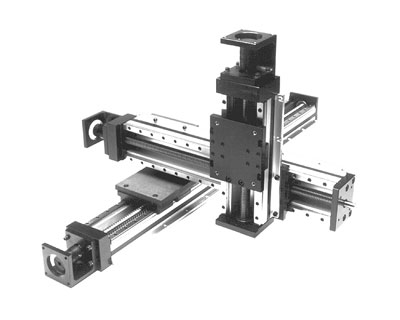

Lintech has the ability to build any of its standard positioning systems in single or multi-axis, using pre-engineered mounting brackets. Mix and match different axes for a customized linear robotics solution.

Information on the 100 Series Positioning Slide from Lintech can be viewed at: https://www.electromate.com/assets/catalog-library/pdfs/lintech/Lintech_100_110_120_catalog.pdf
