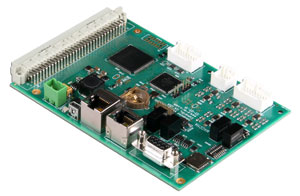

ADVANCED Motion Controls Releases the microMACC (micro-sized Motion Automation Control Card)
POSTED 11/03/2015
The µMACC is the newest addition to the ADVANCED Motion Controls® MACC controller family. It is designed to be a compact, low cost, controller for machine automation and/or process control applications. Based on the firmware loaded, the µMACC can control: up to 6 axes of servos or steppers via Pulse/Direction signals, servo drives via the CAN Bus, or 2 servo axes via PWM signals to digital servo drives.
Designed for general purpose applications (e.g. servo loops, data acquisition, etc.) the µMACC can act as a stand-alone controller or as a control interface between a PC running a Click&Move program and the motion control hardware.
Features
- Newest addition to the AMC MACC family of controllers
- Compact, low cost machine automation controller
- Up to 6 axes of servo or stepper control
- Control signals : pulse/dir , network over CAN Bus, PWM
- Programmed with AMC's Click&Move IDE or directly in C. Standalone or tethered operation
- On-board I/O can be expanded with 4 different types of pluggable, optional I/O modules
- 100Mbit Ethernet connection to PC and/or HMI
- 4K of non-volatile parameter storage
- 1MB of program storage
- Customizable via firmware for OEM specific applications
- Dimensions mm (in) 142.30 x 99.95 x 18.10(5.61 x 3.94 x 0.71)
Projected Industries & Applications
Lab Automation, Metrology, Machine Tool, Woodworking, Embedded Systems
