Servo vs Stepper Motors

What Is the Difference Between Servo and Stepper Motors?

---

How Do Torque Curves Differ?

Servo motors maintain relatively flat torque across their speed range until reaching rated speed, then enter a constant power region where torque decreases with increasing speed, while stepper motors provide maximum torque at zero speed with torque declining rapidly as speed increases.

Servo vs Stepper Motor: Feature Comparison

Feature	Servo Motors	Stepper Motors
Control Method	Closed-loop with position feedback	Open-loop, no feedback (standard configuration)
Torque at Low Speed	Moderate, increases with current	Maximum (holding torque)
Torque at High Speed	High, maintains torque across speed range	Low, drops significantly above 1,000 rpm
Speed Range	Wide, 0-5,000+ rpm typical	Limited, 0-2,000 rpm practical maximum
Positional Accuracy	Very high, ±encoder resolution	Good, ±step angle (typically 1.8° or 0.9°)
Feedback System	Encoder, resolver, or absolute position sensor	None (open-loop) or optional encoder
Response Time	Fast, high bandwidth control	Moderate, limited by stepping rate
Resonance Issues	Minimal, actively damped by control	Significant at mid-range speeds without damping
Cost	Higher ($200-$2,000+ per axis)	Lower ($50-$500 per axis)
Complexity	Higher, requires tuning	Lower, simpler setup
Best Applications	High-speed, dynamic loads, precision	Moderate speed, predictable loads, cost-sensitive

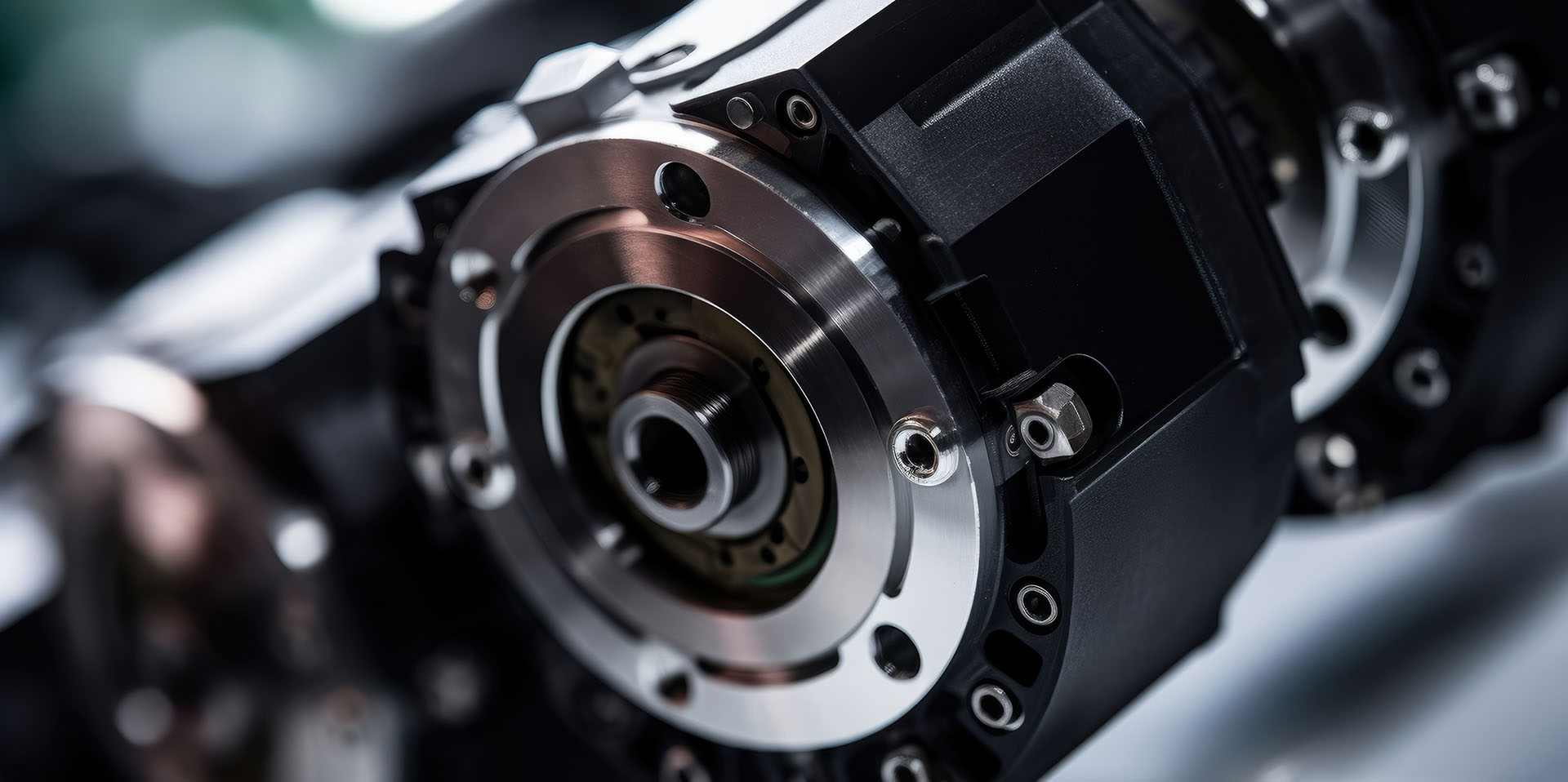

Servo Motor Torque Characteristics

Servo motors provide continuous rated torque from zero speed up to rated speed (typically 2,000-3,000 rpm), meaning the motor can deliver full torque whether accelerating from rest or running at moderate speeds. Above rated speed, the motor enters a constant power region where available torque decreases proportionally with speed increases. At 2x rated speed, available torque is approximately 50% of rated torque. This characteristic suits applications requiring:

• Rapid acceleration - Full torque available from standstill
• Variable speed operation - Consistent performance across speed range
• Dynamic load handling - Maintains torque as conditions change

A servo motor rated for 5 Nm continuous torque at 3,000 rpm provides that full torque from 0-3,000 rpm, then still delivers 2.5 Nm at 6,000 rpm, enabling high-speed operation with reasonable torque.

Stepper Motor Torque Characteristics

Stepper motors deliver maximum torque at standstill (holding torque), but available torque decreases as stepping rate increases. At 1,000 rpm, a stepper might provide only 30-40% of its holding torque, dropping to 10-20% at 2,000 rpm. This rapid torque decline limits stepper motors to applications where:

• Speeds remain moderate - Typically under 1,000 rpm for reliable operation
• Loads are predictable - Consistent torque requirements
• Positioning accuracy at rest matters - Full holding torque when stationary

The torque-speed curve also shows mid-range resonance regions where torque dips due to mechanical vibrations matching the stepping frequency. These resonances can cause positioning errors or stalls unless addressed through microstepping, damping, or operating speed selection that avoids resonant frequencies.

---

What Feedback Systems Do Servos Use?

Servo motors use rotary encoders (incremental or absolute), resolvers, or hall-effect sensors to provide position, velocity, and sometimes commutation feedback, enabling closed-loop control that continuously corrects positioning errors and optimizes motor performance.

Incremental Encoders

Incremental encoders generate pulses as the motor shaft rotates, with pulse count indicating relative position change from a reference point. Common resolutions range from 1,000 to 1,000,000+ pulses per revolution (PPR), with higher resolutions enabling finer position control. A 10,000 PPR encoder on a motor driving a 5mm lead screw provides 0.0005mm theoretical resolution. Incremental encoders require homing sequences on power-up to establish absolute position since they only track relative movement.

Absolute Encoders

Absolute encoders provide unique position codes for each shaft angle, maintaining position knowledge through power cycles without homing. Single-turn absolute encoders track position within one revolution, while multi-turn versions count full rotations (typically 4,096-65,536 turns) using gear reduction or battery-backed counting. This eliminates homing requirements, enabling systems to resume operation immediately after power restoration without reference moves.

Resolvers

Resolvers use electromagnetic coupling to generate analog signals proportional to shaft angle, providing inherently absolute single-turn position feedback. These robust sensors tolerate harsh environments including extreme temperatures, shock, vibration, and radiation better than optical encoders. Military, aerospace, and heavy industrial applications favor resolvers despite lower resolution (typically equivalent to 12-16 bit encoders) and higher cost.

Feedback Signal Processing

The servo drive continuously compares commanded position (from the motion controller) with actual position (from the feedback device), calculating the position error. The drive's control algorithm adjusts motor current to minimize this error, creating closed-loop control that compensates for:

• Load disturbances - Automatically increases torque when loads increase
• Friction variations - Adjusts drive to maintain consistent velocity
• External forces - Resists position changes from external pushes or pulls

This real-time correction enables servo systems to maintain accuracy despite changing conditions that would cause stepper systems to lose steps or stall.

---

When Should You Use a Stepper Motor?

Use stepper motors for moderate-speed positioning applications with predictable loads, when cost constraints are significant, or when the simplicity of open-loop control outweighs performance limitations, particularly in applications requiring holding torque at rest without power consumption.

Ideal Stepper Motor Applications

3D Printers and Desktop CNC - Positioning speeds under 100mm/s with moderate acceleration suit stepper capabilities. The cost advantage enables multi-axis systems at consumer price points. Predictable loads (extruder resistance, cutting forces) remain within stepper torque capacity. Open-loop operation simplifies electronics and software.

Laboratory Automation - Sample positioning, liquid handling, and optical adjustments require precise but slow movements where steppers excel. The ability to hold position without drift or power consumption suits applications requiring extended static positioning between moves. Simpliclicity reduces system complexity in equipment where motion control is a supporting function rather than the primary capability.

Packaging and Conveying - Indexing conveyors, label application, and product positioning at moderate speeds (under 500mm/s) work well with steppers when loads are consistent and cycle times are not aggressive. The cost per axis enables multi-station systems without expensive servo infrastructure.

When Steppers Become Inadequate

High-speed operation - Applications requiring sustained speeds above 1,000 rpm or rapid accelerations benefit from servo motors maintaining torque at speed. Steppers lose significant torque above moderate speeds, limiting throughput.

Variable loads - Dynamic cutting forces, external disturbances, or changing payloads cause steppers to lose steps or stall. Servo closed-loop control automatically compensates for load variations without position loss.

High precision - While steppers provide adequate accuracy for many applications (±1-2 steps), applications requiring sub-micron positioning or demanding accuracy verification need servo systems with high-resolution feedback.

Critical positioning - Medical devices, semiconductor equipment, or applications where lost steps create safety hazards or product loss require servo closed-loop verification that actual position matches commanded position.

How Do Overall Costs Compare?

Stepper motor systems cost 50-70% less than comparable servo systems when considering motors, drives, and basic implementation, but total cost of ownership must account for performance limitations, potential throughput reductions, and system complexity for applications approaching stepper capability limits.

Component Cost Breakdown

Stepper motor and drive: $50-$500 per axis depending on size and performance. A NEMA 23 stepper with microstepping drive suitable for small CNC or 3D printer costs $100-$200. NEMA 34 steppers for larger machines cost $200-$500 per axis.

Servo motor and drive: $200-$2,000+ per axis. Small servos (100-400W) with drives cost $300-$800, while industrial servos (750W-3kW) range from $800-$2,000+ per axis. High-performance systems exceed $5,000 per axis.

Feedback devices: Stepper systems (open-loop) require no feedback sensors. Servo systems include encoders (typically $50-$300 integrated) or require separate absolute encoders ($200-$1,000+) for applications demanding position retention through power cycles.

Hidden Cost Factors

Engineering time - Stepper systems install and program quickly with minimal tuning. Servo systems require gain tuning, trajectory planning, and system optimization that adds engineering hours. For simple applications, this labor difference can exceed component cost savings.

Power consumption - Servos draw current proportional to load, idling at low power. Steppers draw rated current continuously to maintain holding torque, consuming more power during idle periods. High-utilization applications favor servos for operational cost savings.

Throughput limitations - Stepper speed constraints may require additional axes, longer cycle times, or oversized motors to meet performance targets. A servo-based system might achieve required throughput with three axes while a stepper system needs four axes for equivalent productivity, offsetting component cost savings.

Total Cost of Ownership

For cost-sensitive, moderate-performance applications (hobby equipment, basic automation, lab instruments), steppers provide excellent value. Component savings plus simpler implementation justify performance compromises.

For production equipment where throughput drives profitability, servo investments return value through faster cycle times, better accuracy, and higher reliability. A $1,500 per-axis servo upgrade enabling 20% throughput improvement pays for itself quickly in high-volume manufacturing.

For applications at stepper performance limits, where oversized steppers might barely meet requirements, servos often prove more economical by providing performance margin and eliminating risk of lost steps or resonance issues requiring design iterations.

---

Conclusion

Servo and stepper motors serve different needs in motion control applications. Servos provide superior speed, dynamic response, and torque maintenance across operating ranges through closed-loop feedback, justifying higher costs for demanding applications. Steppers offer simplicity, adequate performance for moderate-speed positioning, and lower costs that suit applications where their performance envelope suffices.

Selection requires matching motor characteristics to application requirements rather than assuming either technology is universally superior. Applications requiring high speed, dynamic loads, or critical position verification favor servos. Cost-sensitive applications with moderate speeds and predictable loads benefit from stepper simplicity and economy. Understanding torque curves, feedback requirements, and total system costs enables appropriate selection that optimizes performance, reliability, and cost for specific motion control needs.

---
