Improving Efficiency with Flexible Automation
What is Flexible Automation?
Flexible automation is a concept that allows a production cell to be re-tasked quickly and easily. This gives the hardware applicability in multiple automation processes, while requiring minimal tooling changeover between tasks.
Traditionally, generalized automation implementation has been ruled out for many applications where a flexible cell would THRIVE due to the application requiring the handling of parts that are difficult to feed or pick, and/or running into applications with high mix / low volume attributes. However, given recent technological advancements, these applications that were once not feasible from a cost perspective are now much easier to invest in thanks to commercialized assets that are now re-deployable in facilities. With key components in a cell able to be re-deployed to other tasks when needed with minimal effort, risk and cost is reduced for the end-user.
Let's review some key components in a flexible automation cell: The contents are pretty simple, and boils down to four generalized components that allow the cell to receive, sense, and manipulate the desired object.
1. Part Feeders
The part feeder is a device that consistently presents the object(s) to the robot for handling or manipulation. They come in many forms and from many different manufacturers, but a general rule of thumb for a flexible cell is to select a feeder that can work with a mixture of parts, with minimal operator involvement. An excellent example of this would be the Asycube series from Asyril SA - Experts in Flexible Feeding Systems. These feeders use vibration technology to shuffle and orient essentially any part geometry into the correct orientation for picking. You can learn more about Asyril on our website, if you're looking for a feeder or want to see a video of them in action: Asyril Feeders
2. Vision System and Sensors
We've almost all seen vision used in a manufacturing facility by now, whether it's strapped to the end of a robot or clamped to a conveyor to monitor parts as they flow down the line. In a flexible cell, the purpose of the vision will depend largely on the application. Generally speaking, it will collect data and either send coordinates to the robot for picking or inspect the parts against programmable criteria (geometric dimensions, presence/absence, etc). In the past few projects we've taken on, we've had huge success using SensoPart's VISOR Sensors as well as OnRobot Eyes. That being said, the choice of what vision technology to use depends on the scope of work that your application demands.
3. The Robot
So far, we've covered the components that present the part and either identify or detect the part. Now comes the critical act of actually moving the part. Over the past 5 years there have been countless new technologies released to the market surrounding the buzzword "collaborative robotics." Cobots are excellent for flexible cells because they don't require any guarding and can work alongside humans (assuming the application is safe). The most flexible type of robot will be a 6 or 7-axis model, carried by manufacturers like Universal Robots (6 axes) or Kassow Robots (7 axes). Having an extra axis can be a huge advantage with cycle time, or trying to reach around corners in tight-spaced applications like machine tending.
4. End of Arm Tooling
End of arm tooling selection is critical to successful implementation. Engineers will need to take into account factors such as payload, part delicacy, environment, and more that all depends on what you need to accomplish. For instance, if you're working on a pick-and-place application then you'll need to decide if vacuum grippers are best suited, or if the job can be accomplished using a more traditional two-finger gripper. The end-effector technology offered to the market in the past few years has skyrocketed, and leading manufacturers like OnRobot offer grippers for most applications that you would find in your facility. That could include material removal, screwdriving, magnetic part retrieval, food handling, and more. You can see a full list of grippers that we've had experience implementing here.
In summary, the key benefit of flexible automation is being able to re-deploy assets with minimal monetary and physical effort. Take a look back to the the year 2020, when COVID hit. Many businesses were able to find success by shifting their focus to manufacturing PPE and other relevant products that helped battle the pandemic, and having chosen the correct equipment was crucial. However, even less drastic shifts can prove flexible automation to be a business-savvy investment. With the labor shortage that we've been seeing, giving businesses the ability to quickly re-task their equipment to fulfill the duties of an absent worker have also been a proven pro to this type of investment.

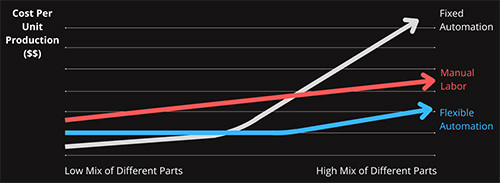

If you look at the graph below, you can see the value that a flexible solution brings when compared to traditional fixed automation or manual labor. If you look at the return on investment for a fixed solution, it only makes sense for when your facility manufactures the same part over and over again. Once your process dips to medium/high part mix, flexible automation becomes an extremely viable solution. With flexible automation, you can keep your costs reduced and have a much quicker return on investment while also preparing your company for any future pivots.
