High Volume Piston Assembly Equipment

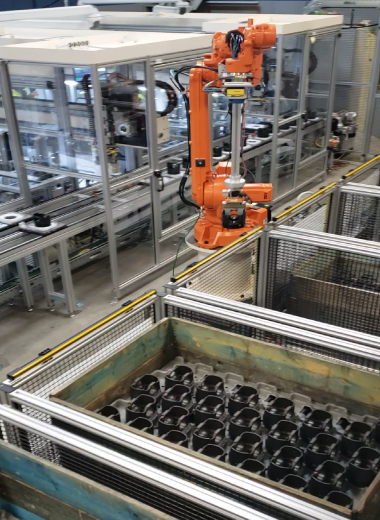

HG Automation developed a robust automated assembly system designed to support multiple piston assembly variants across two engine families. The system delivers fully assembled pistons including cylinder liners directly to the customer’s engine block assembly line through an on-demand one-piece flow production strategy.
Operating at a 25-second cycle time, the solution utilizes palletized conveyance with RFID tracking to ensure complete product traceability and variant control throughout the process. Key assembly operations include precision servo pressing, piston ring singulation and insertion, and multiple vision inspection stations to verify assembly quality and component presence.
ROI Calculator

Discover the potential cost savings of robotic automation over a 20-year system life
This calculator compares your current manual labor costs against the total cost of owning and operating a robotic system over its 20-year lifespan.
To support the customer’s digital manufacturing environment, the system was fully integrated with the plant’s internal MES infrastructure enabling real-time production tracking, data collection, and seamless communication with upstream and downstream processes.
The result is a highly flexible and reliable assembly platform capable of handling complex product variation while maintaining consistent throughput and quality for engine production.
