A compact Stewart Platform Multi-Axis stage for precision positioning, based on the parallel kinematic hexapod principle was added to PI's hexapod family. The H-811.iV vacuum compatible miniature 6-axis hexapod stage is a multi-axis positioning system with high resolutoin motion in a very compact package. Hexapod multi-axis stages are often used in active optical alignment and silicon photonics applications due to their versatility, precision and responsiveness. A programmable pivot point allows the user to adapt the motion system to any alignment application quickly without retooling. The mini hexapod has a load capacity of 11lbs and provides a maximum linear travel range of 34mm and maximum rotational range of 42 degrees. The position repeatability is ±0.06µm. Additional technical data are available on the H-811 vacuum hexapod product specifications page.
 |
|
| H-811 Mini Hexapod Stewart Platform Provides Multi-Axis Motion | Watch Video how Hexapod Stewart Platforms work |

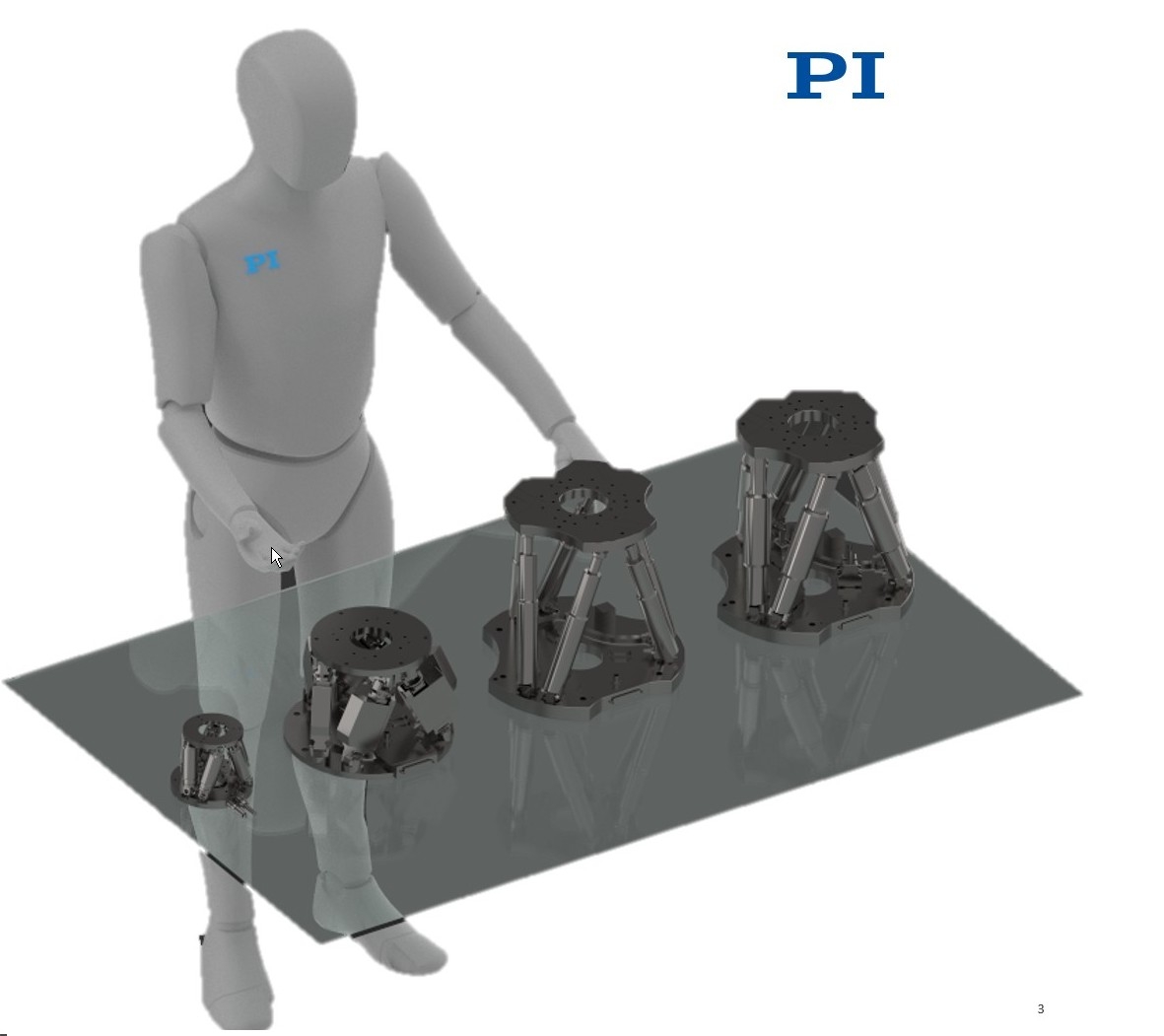

Size comparison of the miniature 6-axis stage stewart platform with a humanoid robot.
