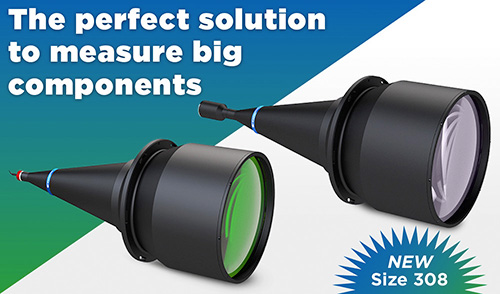

Order now the biggest telecentric lenses and lights ever made by Opto Engineering®

Measuring big components is anything but easy and we at Opto Engineering^® are perfectly aware of this. That’s why, thanks to our 20 years experience in the world of machine vision, we developed the biggest telecentric lenses and illuminators ever made by Opto Engineering^® specifically designed to measure big components.

With their large field of view, our high-performance giants make the measurement of larger samples possible: the 417 mm front lens allows you to accurately measure the object without the need to move it and ensures excellent resolution, low distortion and measurement accuracy.

Opto Engineering^®’s biggest telecentric lenses and illuminators are now available for sale in different formats with various mounting options.

Key advantages

• Wide image circle for large sensors up to 43.3 mm;
• Excellent resolution and low distortion;
• Simple and robust design for industrial environments;
• Detailed test report with certified parameters.

• Complete light coupling;
• Border effects removal;
• Improved field depth and telecentricity;
• Detailed homogeneity test report with measured values.

Product range

TC12M series

Telecentric lenses for sensors up to APS-H and 4k line scan cameras

TC12M308-F

High resolution telecentric lens for sensors up to APS-H, mag. 0.100 x, wF/# 8, F-mount

TC12M308-J

High resolution telecentric lens for sensors up to APS-H, mag. 0.100 x, wF/# 8, M42x1 FD 12

TC16M series

Telecentric lenses for sensors up to 43.3 mm and 8k line scan camera

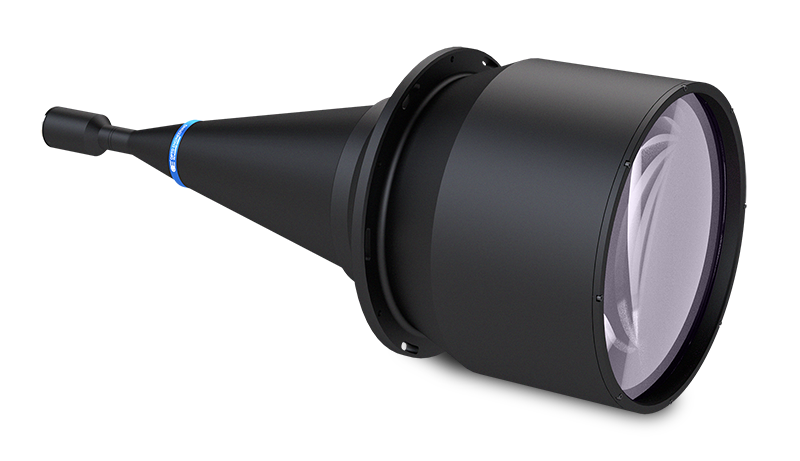

TC16M308

High resolution telecentric lens for sensors up to 43.3 mm, mag. 0.116 x, wF/# 8, F-mount

TC16M308-Q

High resolution telecentric lens for sensors up to 43.3 mm, mag. 0.116 x, wF/# 8, M58x0.75 FD 6.56

TC16M308-K

High resolution telecentric lens for sensors up to 43.3 mm, mag. 0.116 x, wF/# 8, M58x0.75 FD 12.96

LTCLHP series

High-performance telecentric illuminators

LTCLHP308-G

High-performance telecentric illuminator, beam diameter 380 mm, green

Found it interesting

and want to learn more?

Visit our website www.opto-e.com and contact our Area Managers

to discover more!
