Imaging Module PROFIL 1.0x Tele/Light HighRes

POSTED 01/22/2018

For High Resolution Bi-Telecentric Profile Measurement for Quality Control

Our design ethic at Opto is to deliver the best image for your application in the most efficient way possible. Our Imaging Module Profile innovatively combines telecentric optic in a compact design with easy system integration possibilities.

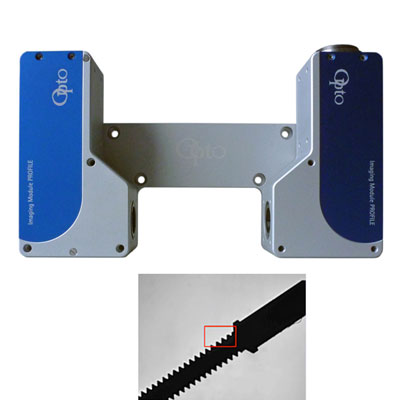

Opto's Imaging Module PROFIL for measuring complex threads, holes, shapesImaging Module PROFIL creates high-performance thread images without any optical artifacts in contrast to a common telecentric measurement setup.

Both parts of the module are interlinked and adjusted over a correscponding mounting plate that fits to the Opto Accessories like stands, focusind units and tables.

Technical Features:

  • Magnification: 1.0x
  • Optimized for max. 1/1.8'' camera
  • Maximal resolution: 1.6 µm pixel with 11-megapixel camera
  • Field of view: 6.4 x 4.8mm with 1/2'' camera
  • 7.2 x 5.3 mm with 1/1.8'' camera
  • Focal ratio: f/8
  • Distortion: <0.2%
  • Telecentricity: < 0.2°
  • Adapter: C-mount with adjustment for camera orientation
  • Telecentric light: blue LED, 465nm
  • Connector for LED:  Binder series 712/702, 5-pin male
  • Forward current: max. 1000mA at 3.7V
  • Working space: 78mm

Accessories:

  • 050-773S01GD01GB025  Connector cable illumination to power supply - 2.5m
  • 043-700020  Power supply, dimmable
  • 044-700113  Power cord - US 2m
  • 044-700110 Power cord - EU 1.8m
  • 044-700111 Power cord - UK 2m
  • 044-700112 Power cord - CH 2m
