How Does a Linear Motor Work?

POSTED 06/27/2017

HOW DOES A LINEAR MOTOR WORK?Rotary Motor to Linear Motor

Used in many industrial and (high-tech) fabrication applications, linear motors are an invaluable part for the fastest and most efficient processes. But how do linear motors work?

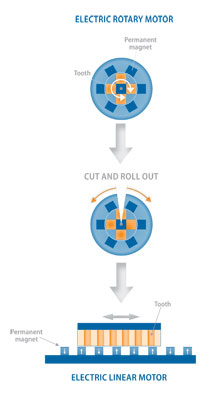

If you were to slice a rotary servo motor and lay it flat, you would have, essentially, a linear motor. The rotor with permanent magnets becomes the stationary part of the linear motor (also called the secondary, or magnet plate), and the stator, which contains the coil windings, becomes the moving part (also called the primary, or coil unit).

Linear motors operate with an AC power supply and servo controller, which are often the same as those used for rotary servo motors. The linear motor primary part is connected to the power supply to produce a magnet field. By changing the current phase in the coils, the polarity of each coil is changed. The attractive and repelling forces between the coils in the primary part and the magnets in the secondary part cause the primary to move and generate a linear force. The rate of change of the current controls the velocity of the movement, and the amperage of the current determines the force generated.
