DualStation Stereo Base with Inverse Microscope and Leica M80

POSTED 01/30/2018

Two high resolution magnification ranges in one scope

  • Reinventing microscopy with a unique easy to use ergonomic user experience. ?
  • Ultra-high contrast macro and micro imaging from the same instrument eliminates the need for 2 separate microscopes! ?
  • Designed for ‘in chamber’ biomed and cell analysis applications such as IVF and other cell engineering applications – no more transferring samples between workstations!
  • Fully compatible and retro-fittable to most leading stereo microscopes, and RFID antenna products

The stereo base contains an integrated LED illumination with Opto 'e-mirror' technology to flexibly adjust the brightness and contrast.

The 200x integrated inverse microscope features precision focus and an adjustable LED illumination with embedded phase contrast for perfect high contrast structural imaging

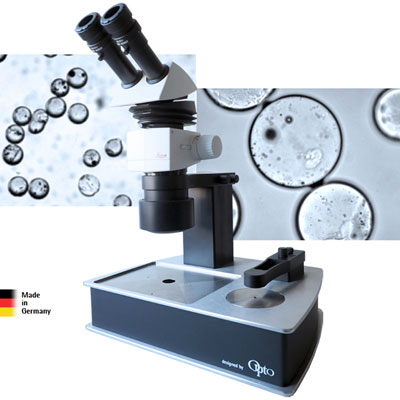

Dual e-Scope with Leica M80

Technnical Features
Article number, base 045-100181
Stereo microscope stand with Leica M80
Focus-objective magnification 1x
Working distance 90 - 110mm
Field of view with Leica M80, 10x/23 Ocular 2 - 20mm
Illumination LED, e-Mirror Technology with adjustable brightness and contrast
Inverse microscope with included camera 5 MP
Camera connector  USB 3
Inverse microscope magnification 400x on 17'' monitor
Resolution 800 nm
Focus adjustable
Field of view 0.8 x 0.6 mm
Illumination LED Köhler-illumination, adjustable brightness and high contrast

Surface material  stainless steel
Ready for RFID-reader integration

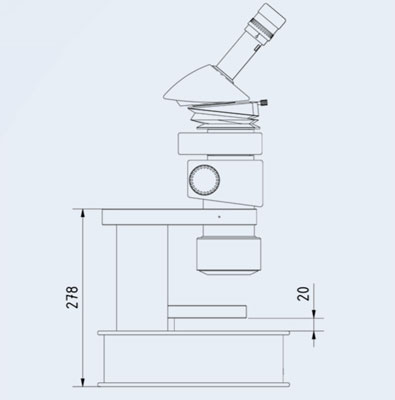

Technical Drawing 1

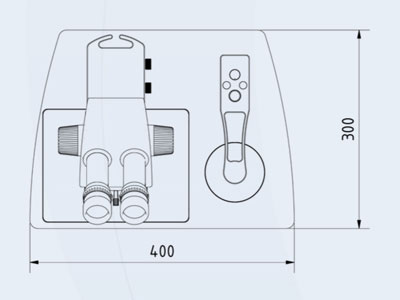

Technical Drawing 2

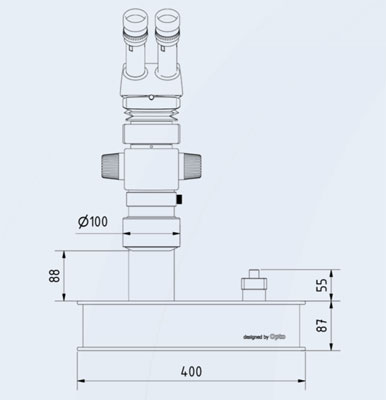

Technical Drawing 3
