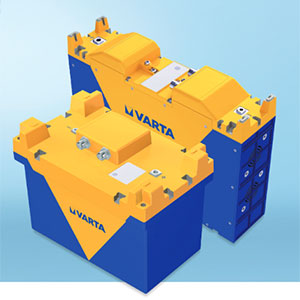

EasyBlade 24V & 48V

The Application Specific Batteries (ASB) from VARTA are designed for the use in small and medium sized vehicles like AGV’s and forklifts. The Lithium-Ion batteries are modular and expandable and therefore can be adjusted for your application in industries like logistics, agriculture and others. Customers are provided with a ready-to-use battery solution, including all necessary accessories and certifications.

Features:

• Quicker charging with high charge and discharge capabilities
• Long Cycle Life for Useful Calendar Life
• No development costs and faster time to market
• Smart electronics allowing battery protection, safety and communication
• High Energy Density for Long Run-time
• Much longer service life before any replacement is necessary, less additional service cost

Applications:

• Material Handling
• AGV and Robotics
• Low Speed Electric Vehicle

VARTA Application Specific Batteries deliver industrial-standard batteries for a range of OEM customers with demanding power and intelligence requirements.

EasyBlade 24V & 48V
The Easy Blade is a CAN-Bus enabled modular battery with >1600Wh per battery module, capable of being used alone or combined together in parallel connection for up to 25 modules in total.

Features:

• Active temperature regulation through an integrated cooling system to avoid hot spots and extend lifetime
• Simple expansion of the capacity by connecting the battery modules in parallel and increasing the charge and discharge rates up to 40kWh
• Thanks to the mechanical design the battery can be locked firmly in the intended application and the modules can be stacked
• Control of the modules including the charger by a dynamic Master-Slave-BMS concept via CAN communication – no external BMS required

Applications:

• Robots, Automated Guided Vehicle (AGV), Autonomous Mobile Robots (AMR)
• Material Handling
• Agricultural Applications (Seeders, Weeders, Feeders, Sprayers)
• Industrial Lawn Mowers

Data Sheets

• Easy Blade 24
• Easy Blade 48
