VideoMic® Multisensor Video Measurement Systems

Features

• XYZ Measuring Range Options:
  • 305 mm x 305 mm x 200 mm (Linear Motor)
  • 460 mm x 305 mm x 200 mm (Linear or Servo Motor)
  • 711 mm x 610 mm x 200 mm (Linear or Servo Motor)
  • 965 mm x 760 mm x 200 mm (Linear Motor)
  • 1270 mm x 915 mm x 200 mm (Linear Motor)
• All Systems Offer CNC and Manual Operation
• High-Resolution Video Sensors for High-Contrast Imaging
• Laser and Tactile Probes for Multisensor Metrology
• Multiple LED Options to Highlight Surface and Edge Features
• Stable Granite Base Ensures High Accuracy and Repeatability
• Floor-Standing, Ergonomic Workstation for Simple and Convenient Operation
• Advanced, Feature-Rich M3 MetLogix^®a Metrology Control Software

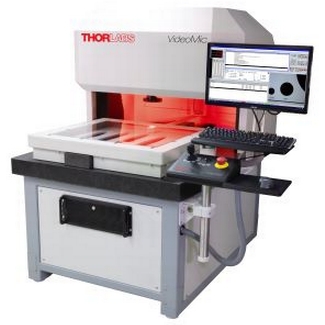

Thorlabs' VideoMic^® video measuring systems provide high-speed, non-contact 3-axis coordinate measurement with industry-leading accuracy. These multisensor measuring machines can easily verify critical dimensions on first articles, production samples, or entire runs. Automated inspection protocols utilize the system's large field of view and high-resolution sensors to easily inspect large volumes of parts sequentially or simultaneously. With tolerance reports and export utilities, thresholds can be set to enable timely corrections to a production process or, when necessary, interruption of production to minimize scrap. With over 1000 systems installed worldwide, each system has a long lifetime, is completely modular, and can easily scale with the demands of any quality assurance or production facility.

Seven base systems are available, each utilizing a granite, split-axis base and gantry; see the Base Systems tab for details. Item numbers beginning with VSA utilize balanced linear motors with air bearings to position each axis of travel, while item numbers beginning with VSM utilize servo-driven ground-ball-screws to position each axis of travel. Each of the three motor axes and associated encoders are bonded directly onto the granite to create a system that is extremely accurate, stable, and resistant to environmental factors.

Once a base system is selected, Thorlabs offers a wide selection of CCD cameras, zoom lenses, and lights to customize the video system to the demands of the application. For further details, see the Video Configurations tab above. A number of optional accessories are also available to increase the versatility and functionality of the system. These include Renishaw^®b tactile probes; laser sensors; a hinged, pneumatic glass platen; a touch screen monitor; statistical process control software; and import/export utilities. See the Accessories tab for additional details about these options.

Please contact [email protected] for help selecting or customizing a base system or to inquire about other options.
