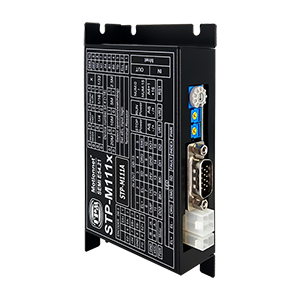

Motionnet 1-Axis Closed-Loop Stepper Drive

Communication controller

Motionnet slave motion controller ASIC

Serial interface

RS-485 with transformer isolation

Transmission speed

2.5Mbps, 5Mbps, 10Mbps and 20Mbps

Cable type

CAT5 UTP / STP Ethernet cable

Surge protection

10KV

Multi axes drive

Max. 32 sets / ring

I/O input signal

PEL, MEL, ORG, LTC and EMG

I/O output signal

CMP

Position control

ncremental mode / Absolute mode

Data range : 28 bits

Homing mode

ORG, Z-phase, Limit Totally 13 types

Software

Motion library (DLL) for Win XP / 7 / 10

Input voltage

24VDC

Drive model

2-phase, bi-polar current driving system

Current consumption

3.1W typical (130mA / 24VDC) no load

Ambient temperature

In use : 0~50°C(Noncondensing)

In storage : 10~90% (Non-condensing)

Humidity

In use : 35~85%(Noncondensing)

In storage : 10~90%(Non-condensing)

Resolution

500~50,000 pulse / revolution configured by software

Incremental encoder input

±EA, ±EB

Encoder index signal input

±EZ

I/O input signal

PEL, MEL, ORG, and EMG

Position control

Incremental / Absolute mode

Data range : 32 bits

Homing mode

ORG, EZ, Limit & total 13 types

Vib. resist

0.5G

LED indicator

PWR, RUN, EPR, PEL, MEL, ORG, ALM, EMG

Current setting

Selected : configured by software
