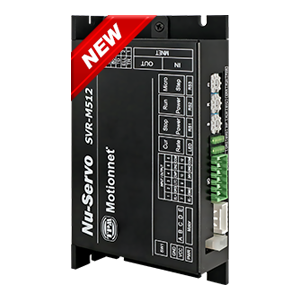

Nu-Servo® Motionnet 1-Axis 5-phase Open-Loop Stepper Drive

Communication controller

Motionnet^® slave motion controller ASIC

Serial interface

RS-485 with transformer isolation

Cable type

CAT5 UTP / STP Ethernet cable

Surge protection

10KV

Transmission speed

2.5Mbps, 5Mbps, 10Mbps and 20Mbps

Multi Axes Drive

Max. 32 sets / ring

I/O input signal

PEL, MEL, ORG, LTC and EMG

I/O output signal

CMP

Position control

Incremental mode / Absolute mode

Data range : 28 bits

Homing mode

ORG, Z-phase, Limit Totally 13 types

Software

Motion library (DLL) for Win XP / 7 / 10

Input voltage

24 or 48V DC

Drive model

5-phase

Driving current

0.5~1.5A Max / Phase

Driving current setting

RUN : 0~F by rotary switch

STOP : 0~F by rotary switch

Micro-step

1, 2, 5, 10, 25, 50, 125, 250, 3, 4, 6, 12,18, 24, 36, 72 by rotary switch

LED display

EL+, EL-, ORG, EMG, INP, ALM, SVON, PWR, RUN, ERR, Current Rate

Current consumption

3.1W typical (130mA / 24V) no load

Ambient temperature

In use : 0~50 °C In

Storage : -20~70 °C

Humidity

In use : 35~85% (Non-condensing)

In Storage : 10~90% (Non-condensing)

Vib. reset

0.5G
