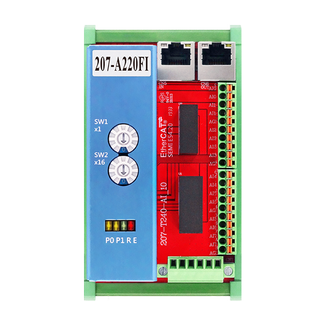

EtherCAT® Analog I/O Slave(AIO)(8-CH.AI)
Model: 207-A220FI(8-CH.AI)
_800x600.png)
Features
• 8-Ch. AI slave module with pluggable terminal
•Max. 100Mbps transfer rate
• Rotary switch for address setting
• Easy installation with RJ45 phone jack and LED diagnostic
• Pluggable terminal block with spring plug connectors
• DIN rail mounting (L-122 x W-66 x H-104 mm)
The 207-A220FI Series is an 8-channel Analog Input (AI) slave module with the pluggable terminal block. There are two series of 207-A220FI. With EtherCAT® control, it will lead to fast ethernet and full-duplex serial interface.I/O Module The transmission speed is up to 100 Mbps. Remote IO The digital slave can connect different slaves serially with cable CAT5 UTP/STP ethernet cable.EtherCAT IO
- EtherCAT IO 207-A220FI: an 8-channel Analog Input slave module with ±10V input range.
| EtherCAT® | |
|---|---|
| Serial interface | Fast Ethernet, Full-Duplex |
| Distributed clock | 1ms |
| Cable type | CAT5 UTP / STP Ethernet cable |
| Surge protection | 10KV |
| Transmission speed | 100 Mbps |
| I/O isolation voltage | 3750Vrms |
| AD Converter | |
|---|---|
| Effective resolution | 16 bits |
| Accuracy | ±0.5% (FI, FID) |
| Conversion time | ~ 125µs |
| Input range | Single End: 4~20mA |
| General | |
|---|---|
| Power input | 24VDC±5% |
| Power consumption | 3W typical |
| Working temperature | 0°C~60°C (32°F~140°F) ambient temperature with air flow |
| Storage temperature | -20°C~80°C (-4°F~176°F) |
| Humidity | 85% (non-condensing @60°C) |
| Size | L122 x W66 x H104 mm |
