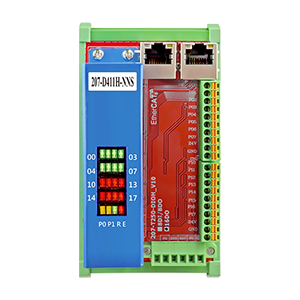

EtherCAT® Digital I/O Module 8-Ch. DI/DO
Model: 207-D411H-NNS / PPS
Features
- 16-Ch. DI/O Slave Module with Pluggable Terminal
- Max. 100Mbps transfer rate
- Easy installation with RJ45 phone jack and LED diagnostic
- Pluggable terminal block with spring plug connectors
- DIP switch for address setting
- DIN rail mounting (L-122 x W-65 x H-104 mm)
Specifications
|
EtherCAT® |
|
|---|---|
|
Serial interface |
Fast Ethernet, Full-Duplex |
|
Distributed clock |
1ms |
|
Cable type |
CAT5 UTP / STP Ethernet cable |
|
Surge protection |
10 KV |
|
Transmission speed |
100 Mbps |
|
I/O isolation voltage |
3750Vrms |
|
Input type |
NPN / PNP type |
|
Input impedance |
5.6KΩ / 0.5W |
|
Input current |
±5mA(Max) |
|
Output type |
NPN : open drain MOSFET; PNP : MOSFET-P; Integral suppression on diodes for inductive loads |
|
Switch capacity |
Each output Ch. is 500mA at 24VDC |
|
Response time |
On to Off, about 50μs; Off to On, about 10μs |
|
Over current protection |
4A (max) for each port (8-Ch.) |
|
General |
|
|---|---|
|
Power input |
24VDC±10% |
|
Power consumption |
3W typical |
|
Working temperature |
0 to 60? |
Ordering Information
- 207-D411H-NNS
8-Ch. DI and 8-Ch. DO with NPN type
- 207-D411H-PPS
8-Ch. DI and 8-Ch. DO with PNP type
- SCB-1BB-06A / 10A / 20A / 30A / 50A / A0A
CAT5 LAN cable, 0.6M / 1M / 2M / 3M / 5M / 10M
