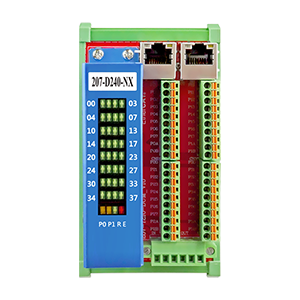

EtherCAT® Digital I/O Module 32-Ch. DI/DO
Model: 207-D240-NX / PX
Features
- 32-Ch. DI slave module with pluggable terminal
- Max. 100Mbps transfer rate
- Easy installation with RJ45 phone jack and LED diagnostic
- Pluggable terminal block with spring plug connectors
- DIP switch for address setting
- DIN rail mounting (L-122 x W-65 x H-104 mm)
Specifications
|
EtherCAT® |
|
|---|---|
|
Serial interface |
Fast Ethernet, Full-Duplex |
|
Distributed clock |
1ms |
|
Cable type |
CAT5 UTP / STP Ethernet cable |
|
Surge protection |
10KV |
|
Transmission speed |
100 Mbps |
|
I/O isolation voltage |
3750Vrms |
|
Input type |
NPN / PNP type |
|
Input impedance |
5.6KΩ / 0.5W |
|
Input current |
±5mA(Max) |
|
Response time |
On to Off, about 50μs; Off to On, about 10μs |
|
General |
|
|---|---|
|
Power input |
24VDC±10% |
|
Power consumption |
3W typical |
|
Working temperature |
0 to 60? |
Ordering Information
- 207-D240-NX
32-Ch. Digital Input (DI) with NPN type
- 207-D240-PX
32-Ch. Digital Input (DI) with PNP type
- SCB-1BB-06A / 10A / 20A / 30A / 50A / A0A
CAT5 LAN cable, 0.6M / 1M / 2M / 3M / 5M / 10M
