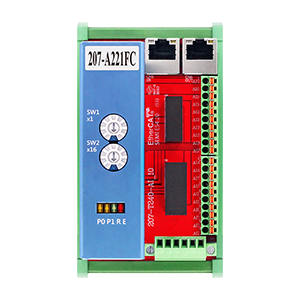

EtherCAT® Analog I/O Modules 8Ch Input and 2 Ch output
Model: 207-A221FC
Features
- 8-Ch. AI and 2-Ch. AO slave module
- Max. 100Mbps transfer rate
- Rotary switch for address setting
- Easy installation with RJ45 phone jack and LED diagnostic
- Pluggable terminal block with spring plug connectors
- DIN rail mounting (L-122 x W-66 x H-104 mm)
Specifications
|
EtherCAT® |
|
|---|---|
|
Serial interface |
Fast Ethernet, Full-Duplex |
|
Distributed clock |
1ms |
|
Cable type |
CAT5 UTP / STP Ethernet cable |
|
Surge protection |
10KV |
|
Transmission speed |
100 Mbps |
|
I/O isolation voltage |
3750Vrms |
|
AD Converter |
|
|---|---|
|
Number of inputs |
8-channel AI |
|
Effective resolution |
16 bits |
|
Accuracy |
±0.2% |
|
Conversion time |
~ 125µs |
|
Input range |
Single End : ±10V; Differential : ±10V |
|
DA Converter |
|
|---|---|
|
Number of outputs |
2-channel AO |
|
Effective resolution |
12bits |
|
Output range |
±10V |
|
General |
|
|---|---|
|
Power input |
24VDC±10% |
|
Power consumption |
3W typical |
|
Working temperature |
0 to 60°C |
Ordering Information
- 207-A221FC
8-Ch. Analog Input (AI) and 2-Ch. Analog Output (AO)
- SCB-1BB-06A / 10A / 20A / 30A / 50A / A0A
CAT5 LAN cable, 0.6M / 1M / 2M / 3M / 5M / 10M
