Taiwan Pulse Motion Product
Member Since 2020
Desired to inspire new automation.
Product filed under:
Control Components, Controls, and I/O Control Components, Controls, and I/O
Features
- 8-Ch. AI slave module with pluggable terminal
- Max. 100Mbps transfer rate
- Rotary switch for address setting
- Easy installation with RJ45 phone jack and LED diagnostic
- Pluggable terminal block with spring plug connectors
- DIN rail mounting (L-122 x W-66 x H-104 mm)
Specifications
|
EtherCAT® |
|
|---|---|
|
Serial interface |
Fast Ethernet, Full-Duplex |
|
Distributed clock |
1ms |
|
Cable type |
CAT5 UTP / STP Ethernet cable |
|
Surge protection |
10 KV |
|
Transmission speed |
100 Mbps |
|
I/O isolation voltage |
3750 Vrms |
|
AD Converter |
|
|---|---|
|
Effective resolution |
16 bits |
|
Accuracy |
±0.2% (F); ±0.5% (FI) |
|
Conversion time |
~ 125µs |
|
Input range |
Single End : ±10V Differential : ±10V |
|
General |
|
|---|---|
|
Power input |
24VDC±10% |
|
Power consumption |
3W typical |
|
Working temperature |
0 to 60? |
Ordering Information

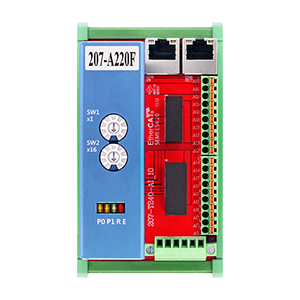

- 207-A220F
8-Ch. Analog Input (AI) w. ±10V
- 207-A220FI
8-Ch. Analog Input (AI) w. 4~20mA
- SCB-1BB-06A / 10A / 20A / 30A / 50A / A0A
CAT5 LAN cable, 0.6M / 1M / 2M / 3M / 5M / 10M
