Deburring Devices and End of Arm Tooling Deburring Devices and End of Arm Tooling
Flexible deburring spindle for use in robotic applications
The unit is driven by a pneumatic spindle with a speed of rotation depending on the unit size. The spindle is swivel mounted for being able to compensate the tolerances of the whole machining contour.
The force (rigidity) is needed for moving (oscillating) the spindle. It is controlled by a second air connection. Depending on the pressure, force is applied on the milling cut surface.
Advantages – Your benefits
- Flexible high-frequency spindle
for maximum flexibility when deburring - Pneumatically adjustable rigidity of the cutting spindle via compressed air
for clean chamfer edges in every installation position - High speeds
for high feed rates - Flexible use
on the robot arm or as a stationary unit - Axis locking function available
to restrict the compensation path on the X-axis.
Options and special information
- Universally
Its flexible mounting options mean the FDB deburring spindle is not restricted to use on a robot arm. It can also be used as a fixed tool with a moving workpiece. - Axis locking function
The RS version enables compensation in one direction. This function is integrated in sizes 900 and 1040.
You can find more information on our homepage.
FDB Deburring spindle (schunk.com)
Other Products from SCHUNK Inc.

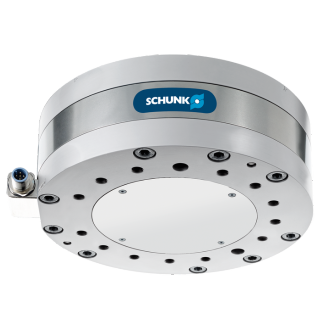

Force Torque Sensor - FT
