Deburring Devices and End of Arm Tooling Deburring Devices and End of Arm Tooling
Pneumatically driven file with radial compensation for machining workpieces
The unit is driven by a pneumatic motor. The motor is driven by filtered and oiled air. The motor is gimbal-mounted to compensate for tolerances on the workpiece contour. The toolholder mounting is held by a file holder as standard for files with a 5 mm shank. The Y-axis can optionally be fixed by a set screw. This means that pendulum compensation is only possible in the X axis. The compliance force is controlled via a second air connection. Depending on the pressure setting, a variable contact force acts on the file tool.
Advantages – Your benefits
- The compensation force can be adjusted means of compressed air.
for high-quality deburring results in any installation position - Flexible use
on the robot arm or as a stationary unit - Use of proven files
for simple automation of manual deburring processes - Flexibility in radial direction
for a simplified robot programming - Simple exchange of wear parts
for maximum system availability and minimum spare parts requirements - Robust bearing
for an optimized service life - Lock function for the Y axis
for an oscillating compensation only in the X-axis
Options and special information
- Universally
Due to its flexible assembly options, the CRT file tool is not only restricted for use on a robot arm. It can also be used as a fixed tool with a moving workpiece.
You can find more information on our homepage.
Other Products from SCHUNK Inc.

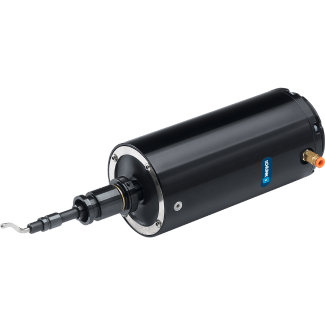

Automated Deburring Tool - CDB
