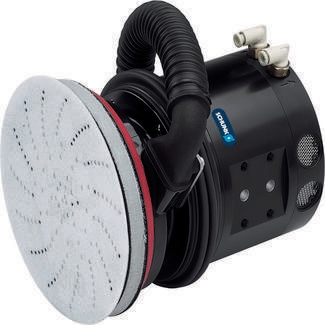

Random Orbital Sander - AOV

The random orbit sander is driven by a vane-type air motor. The motor is driven by filtered and oiled air. The motor is axially and flexibly mounted to compensate for tolerances on the workpiece surface and to ensure a constant contact force during the grinding or polishing process. The contact force can be controlled separately in two directions (retracting and extending) via two air connections, so that a variable contact pressure can be achieved. The random orbit sander can be used with two different sanding pad diameters and can be optionally equipped with a connection for an extraction system.

Advantages – Your benefits

• Compensation can be adjusted by means of a double-action pneumatic cylinder
  for a constant contact pressure independent of the orientation of the tool
• Optional media change system
  for automated exchange of grinding or polishing wheels
• Optional connection for suction
  for reduced contamination and susceptibility to faults
• Flexibility in axial direction
  for a simplified robot programming
• Use of proven, adhesive grinding and polishing wheels
  for simplified automation of manual grinding and polishing tasks
• Simple exchange of wear parts
  for maximum system availability and minimum spare parts requirements

You can find more information on our homepage.

AOV Random orbit sander (schunk.com)
