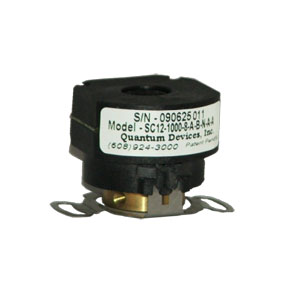

Quantum Devices, Inc. is a USA based manufacture of the QPhase optical incremental encoders. The QPhase series offers line counts up to 20,000 ppr and sinusoidal outputs. Rounding out the QPhase series is the QM35 and QML35 our new low profile, high performance modular encoders
Product filed under:
Encoders / Resolvers / Tachometers and Sensors & Feedback Devices Encoders / Resolvers / Tachometers and Sensors & Feedback Devices
The Quantum Devices EZ-Comm system is the fastest and most economical way to align an optical encoder’s commutation channels to a motor. EZ-Comm was designed to reduce assembly cost for high volume manufacturing. By eliminating multiple steps from the typical timing of an encoder and motor, EZ-Comm saves manufacturing time and reduces assembly cost. EZ-Comm is integrated into the high performance, low profile modular design of the QM35. QM35 EZ-Comm is ideal for high volume OEM applications and priced competitively for all sizes of motion control projects. As simple as a push of a button, QM35 EZ-Comm is the newest and simplest way to commutate your BLDC motors.
Electrical Specifications
| Input Voltage | 5 VDC ± 5% |
|---|---|
| Input Current Requirements | 65mA Typ., 100mA max plus interface loads |
| Input Ripple | 2% peak to peak @ 5 VDC |
| Output Circuits | 26C31 RS-422A line driver (TTL compatible) Optional UVW open collector (No U’ V’ W’) |
| Incremental Output Format | Quadrature A leading B for CCW rotation viewed from encoder top. |
| Max Operating Frequency | < 5000PPR = 500Khz or 15,000RPM 5000PPR – 7999PPR = 675Khz ≥ 8000PPR = 1.0Mhz 1000LC-10P, 1024LC-10P, 2000LC-10P, 2048-10P and 2048LC-14P = 7,000RPM |
| Commutation Format | Three phase 4, 6, 8, 10 or 14 poles |
| Commutation Accuracy (U-V-W) | See Specification Sheet |
| Interpolation Factors | 1000/1024PPR = 2x 2000/2048PPR = 4x 2500PPR = 5x 4000/4096PPR = 8x 5000/5120PPR = 10x 8000/8192PPR = 16x |
Environmental Specifications
| Storage Temperature | -40 to 125° C |
|---|---|
| Operating Temperature | -30 to 115° C |
| IP Rating | 40 |
| Humidity | 90% Non-condensing |
| Vibration | 20 g's @ 25 to 2,000 Hz |
| Shock | 100 g's @ 6mS duration |
Mechanical Specification
| Bore Minimum Diameter | Bore size +0.0002" |
|---|---|
| Recommended Shaft Tolerance | +0.0000/-0.0005" |
| Minimum Shaft Engagement | 0.400" [10.2mm] |
| Allowable Shaft Run Out | 0.002" [0.05mm] TIR [±0.001" shaft radial play from initial shaft position of assembled encoder] |
| Allowable Axial Shaft Movement | ±0.010" [±0.25mm] |
| Mounting | 1.280" bolt circle/size 15 resolver 1.812" bolt circle |
| Dynamic Commutation Adjustment Range | 30° mechanical |
| Moment of Inertia | 8.0 x 10?6 oz-in-S² |
